10-4. Fresh air intake kit for compact cassette type (UTZ-VXAA)
¢
Specifications
Model name UTZ-VXAA
Fresh air
intake
Max. fresh air intake
volume
%
(For High)
10
Connection duct type
mm Ø 100
Pcs 1
Dimensions (H × W × D)
Net
mm
120 × 570 × 570
Gross 165 × 585 × 585
Weight
Net
kg
3.5
Gross 5.5
¢

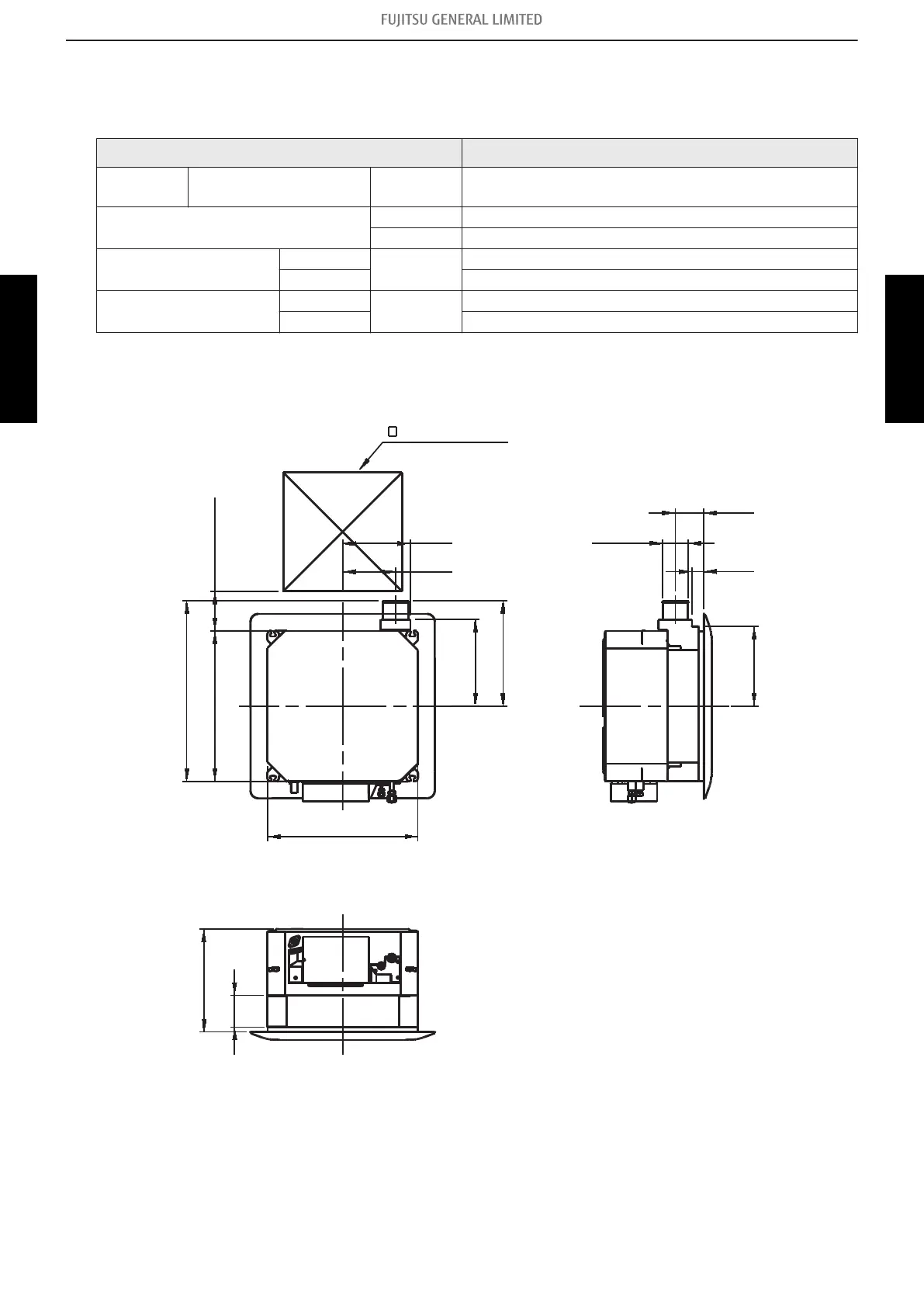

Dimensions
Unit: mm
570
Min. 450
108
Ø100
45
257
201
570
683
390
120
150 to 200
328
398
310
Ceiling opening space
Inspection hatch
Top view
Side view
Side view
NOTE:
When installing this kit, inspection hatch is necessary. (It is necessary when servicing.)
- 313 -
10-4. Fresh air intake kit for compact cassette type (UTZ-VXAA) 10. Optional parts installation
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
