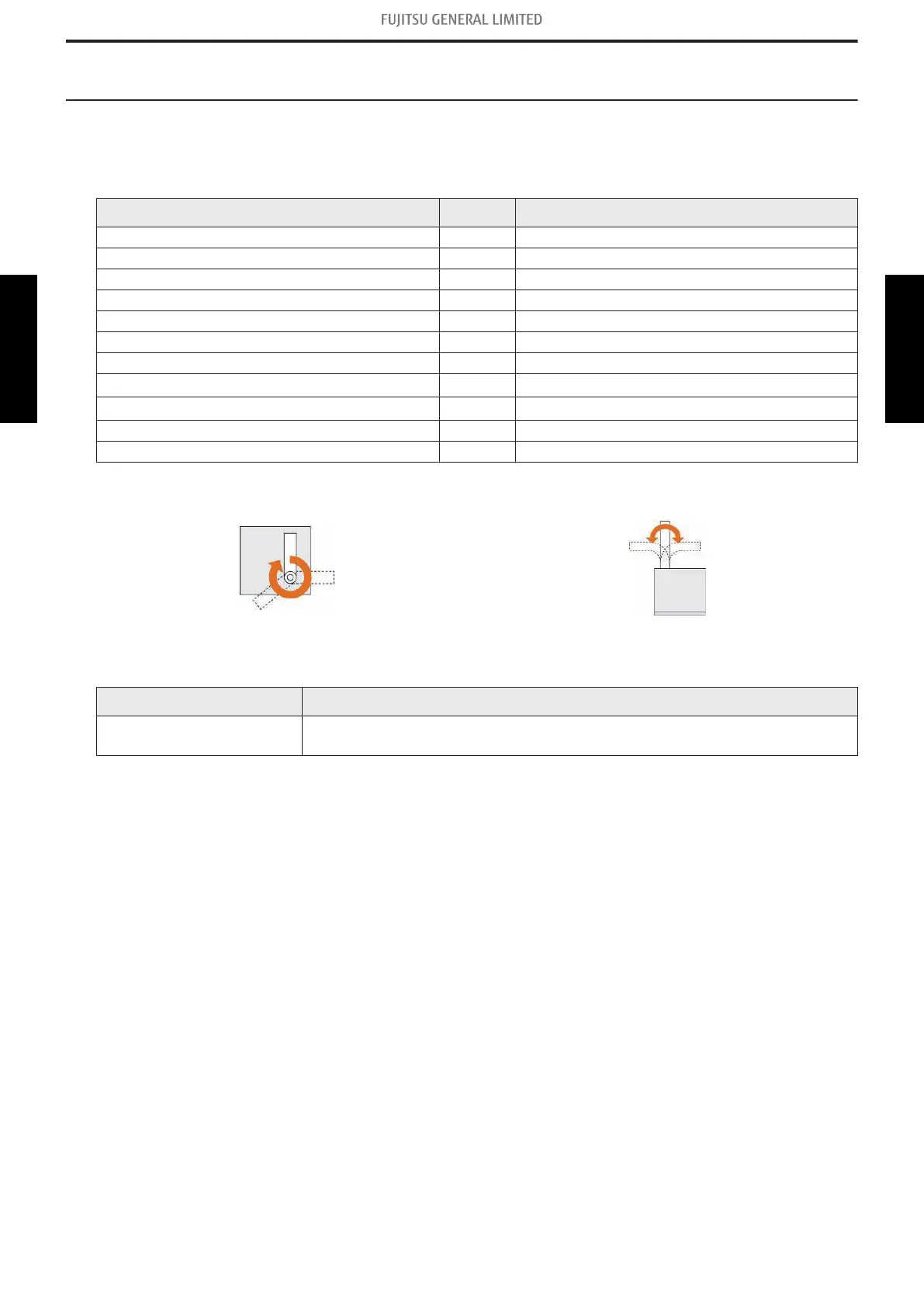

10. Optional parts installation
10-1. Drain pump unit for duct type (UTZ-PX1NBA)
¢
Specifications
Unit Specifications
Height of drain up mm Maximum 1000
Power source — 220—240 V, 50/60 Hz
Power input (230 V, 50/60 Hz) W 12/10.8
Current (230 V, 50/60 Hz) mA 114/92
Dimensions (H × W × D) mm 176 × 178 × 154
Weight kg 2.5
Connection pipe diameter — VP25 (I.D.25 mm, O.D.32 mm)
Direction of pipe connection*
1
— 360°
Angle of pipe connection *
2
— 0° (Horizontal)—90°(Vertical)
Control method — Control board of indoor unit
Safety device — Float switch, Thermal fuse
*1: Direction of pipe connection *2: Angle of pipe connection
¢
Applicable indoor units
Type Model name
Duct type
ARYG22LMLA, ARYG24LMLA, ARYG30LMLE, ARYG36LMLE, and
ARYG45LMLA
- 299 -
10-1. Drain pump unit for duct type (UTZ-PX1NBA) 10. Optional parts installation
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
