¢ Model: ARYG30LMLE (Normal mode)
Static pressure (Pa)
7 10 13 19 21 30 34 47
Fan
speed
HIGH
(Heating)
m3/h — — — — — 2,270 2,240 2,100
l/s — — — — — 631 622 583
CFM — — — — — 1,336 1,318 1,236
HIGH
(Cooling)
m3/h — — — — — 2,050 2,020 1,900
l/s — — — — — 569 561 527
CFM — — — — — 1,207 1,189 1,118
MED
m3/h — — — — 1,685 1,585 1,540 —
l/s — — — — 468 440 428 —
CFM — — — — 992 933 906 —
LOW
m3/h — — 1,325 1,250 1,220 — — —
l/s — — 368 347 339 — — —
CFM — — 780 736 718 — — —
QUIET
m3/h 1,020 995 960 — — — — —
l/s 283 276 267 — — — — —
CFM 600 586 565 — — — — —
Airflow (m
3
/h)
0
60
40
20
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300

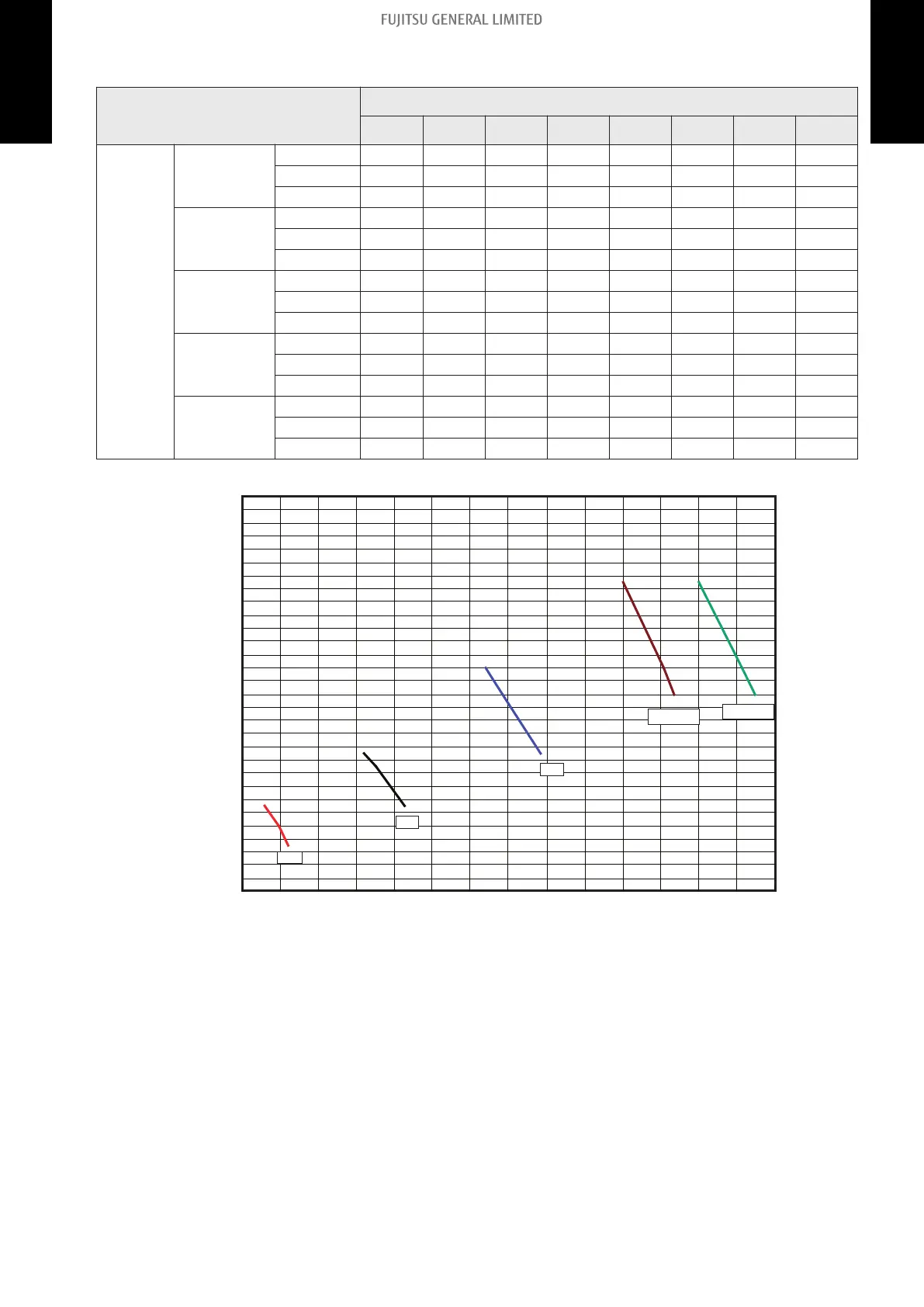

Q-h Characteristic curve
1,300
50
30
10
Med
Low
Hi (Cooling)
Hi (Heating)
Quiet
- 71 -
6-2. Duct type 6. Fan performance
INDOOR UNITS SIMULTANEOUS MULTI INDOOR UNITS SIMULTANEOUS MULTI

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
