Fujitsu ARYG36LMLE User Manual

¢

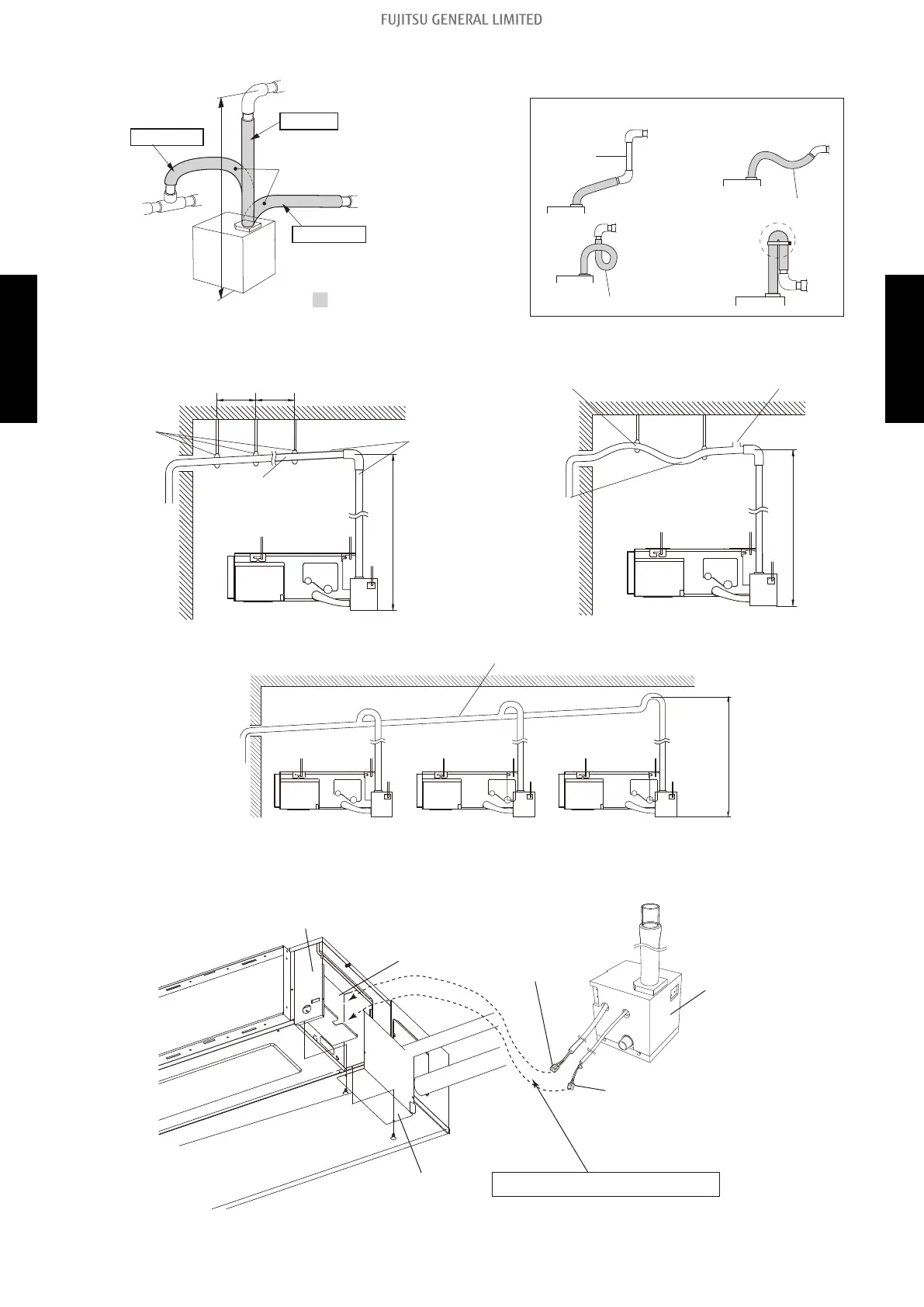

Installing hose
Max. 1m
Downward
Vertical
Horizontal
Bend radius is 60 mm or more
Downward gradient of 1/50 to 1/100
Part: Hose
Upward
Trap
Vertical loop
Example of wrong construction
¢
Installing pipe
Max.1 m
VP30 (O.D.38 mm) or more
Max.1 m
Gas of 1.5-2 m
Supporter
VP25
(O.D.32 mm)
or more
Locally
arrangerd pipe
Max.1 m
Rise
Air bleeding
Trap
Bad
For construct centralized drain pipe fittings, refer to the electrical wiring.
¢
Electrical wiring
Control box
Circuit board
Drain pump wire
(Connector: Blue)
Drain pump unit
Float switch wire
(Connector: Red)
Control box cover
Indoor unit
To indoor unit circuit board
- 301 -
10-1. Drain pump unit for duct type (UTZ-PX1NBA) 10. Optional parts installation
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
