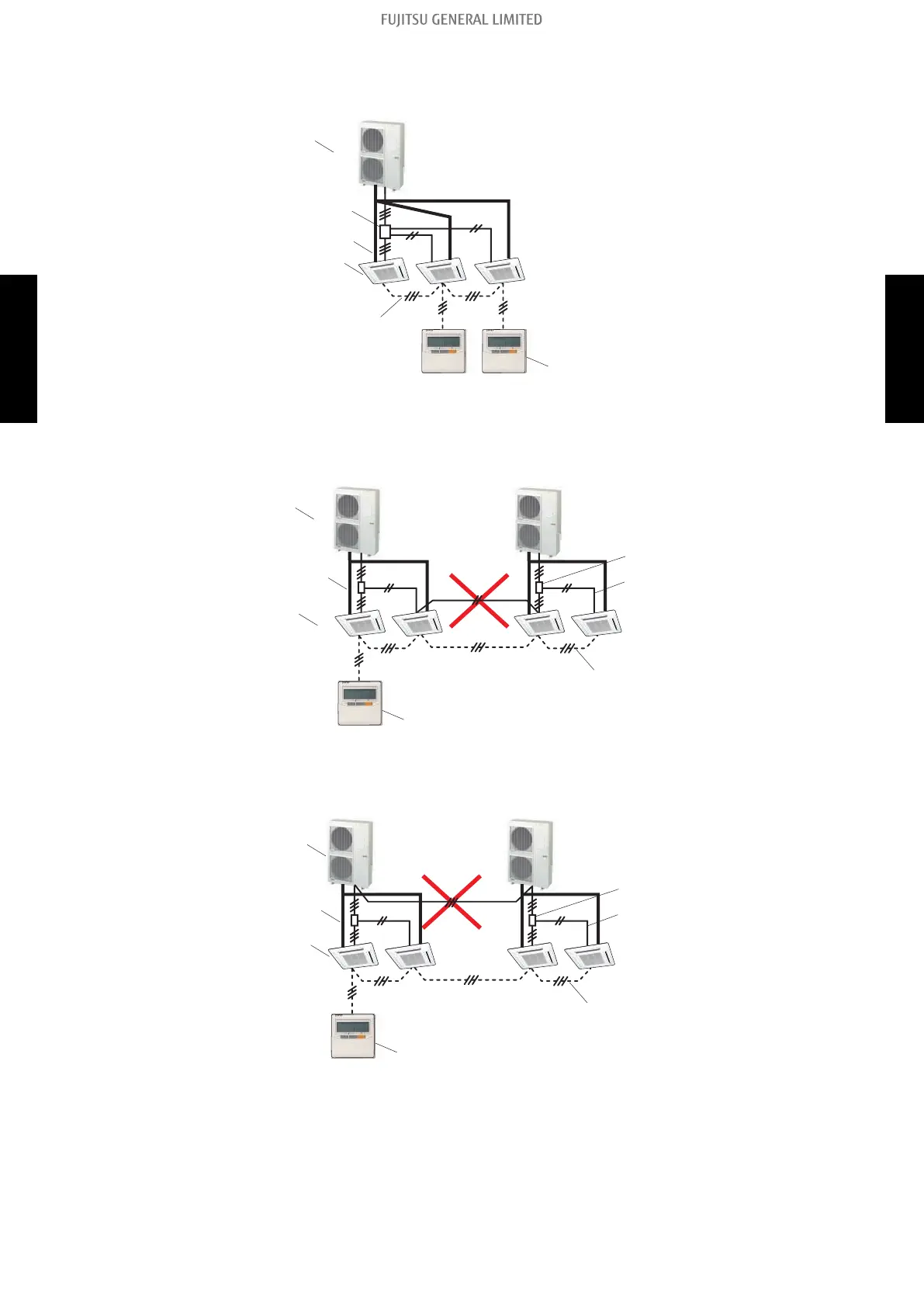

Connection examples
• Example 1 (OK)
Outdoor unit
Indoor unit
Refrigerant pipe
Remote controller cable
<Triple>
P: Primary, S: Secondary
Wired remote controller
P
P S
S S
Junction box
NOTE: Maximum of 2 remote controllers can be connected in the same remote controller group.
Also, a remote controller can be connected to any indoor unit.
• Example 2 (Prohibited)
Refrigerant pipe
Connection cable
Remote controller cable
<Twin> <Twin>
Indoor unit
Outdoor unit
Wired remote controller
Junction box
NOTE: Do not connect between indoor units crossing over a refrigerant circuit.
• Example 3 (Prohibited)
Refrigerant pipe
Connection cable
Remote controller cable
<Twin> <Twin>
Indoor unit
Outdoor unit
Wired remote controller
Junction box
NOTE:
Do not connect outdoor units crossing.
- 219 -
4-3. Control patterns 4. Wiring design
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
