Fresh air control output
• You can control duct fan by synchronization with fan operation of indoor unit.
• Wire for fresh air control output is supplied with Fresh air intake kit.

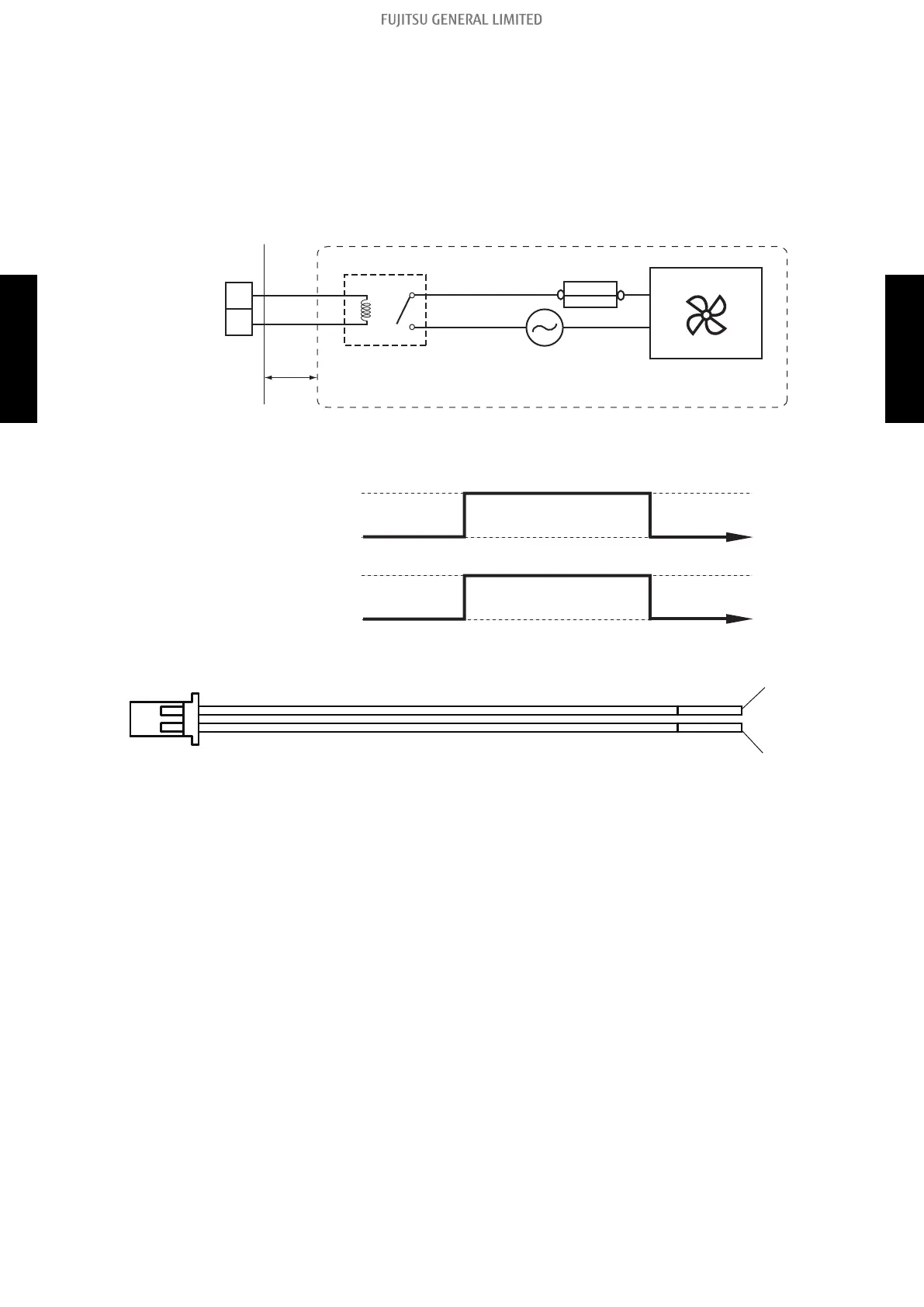

• Connection diagram
For Relay
Output voltage: DC 12 V
Permissible current: 15 mA
1
2
Indoor
unit
PCB
CN6
L*
Relay
Fuse
Power
Fan, other
Locally purchased
+
-
*: Make the distance from the PCB to the Relay unit within 10 m.
• Operation status
Operation
Stop
12 V
0 V
Indoor unit
fan
External
output
• Wire (External output 1)
1
2
Wire color: Red
Wire color: White
- 305 -
10-3. Fresh air intake kit for cassette type (UTZ-VXRA) 10. Optional parts installation
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
