Fujitsu ARYG36LMLE User Manual

¢
Model: ARYG24LMLA (Static pressure mode 2)
Static pressure (Pa)
35 37 50 55 68 75 93 100
Fan speed
HIGH
m3/h — — — — — — 1,160 930
l/s — — — — — — 322 258
CFM — — — — — — 683 547
MED
m3/h — — — — 1,020 800 — —
l/s — — — — 283 222 — —
CFM — — — — 600 471 — —
LOW
m3/h — — 835 670 — — — —
l/s — — 232 186 — — — —
CFM — — 491 394 — — — —
QUIET
m3/h 660 530 — — — — — —
l/s 183 147 — — — — — —
CFM 388 312 — — — — — —
Airflow (m
3
/h)
30
70
50
Static pressure (Pa)
500 600 800 900 1,000 1,100 1,300
Q-h Characteristic curve
700
80
60
40
1,200
Hi
Med
Low
Quiet
90
100
110
- 67 -

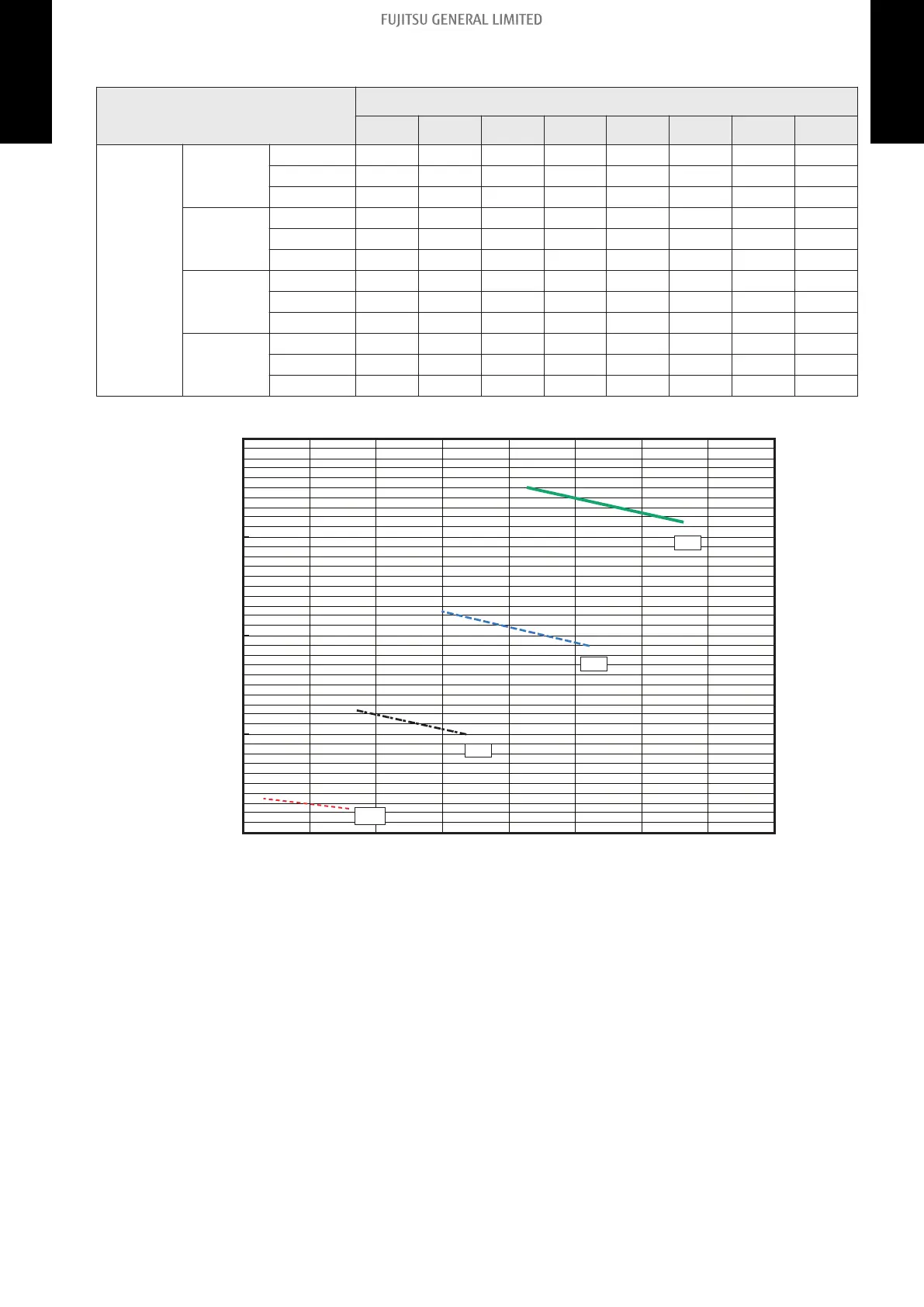

6-2. Duct type 6. Fan performance
INDOOR UNITS SIMULTANEOUS MULTI INDOOR UNITS SIMULTANEOUS MULTI

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
