Fujitsu ARYG36LMLE User Manual

¢

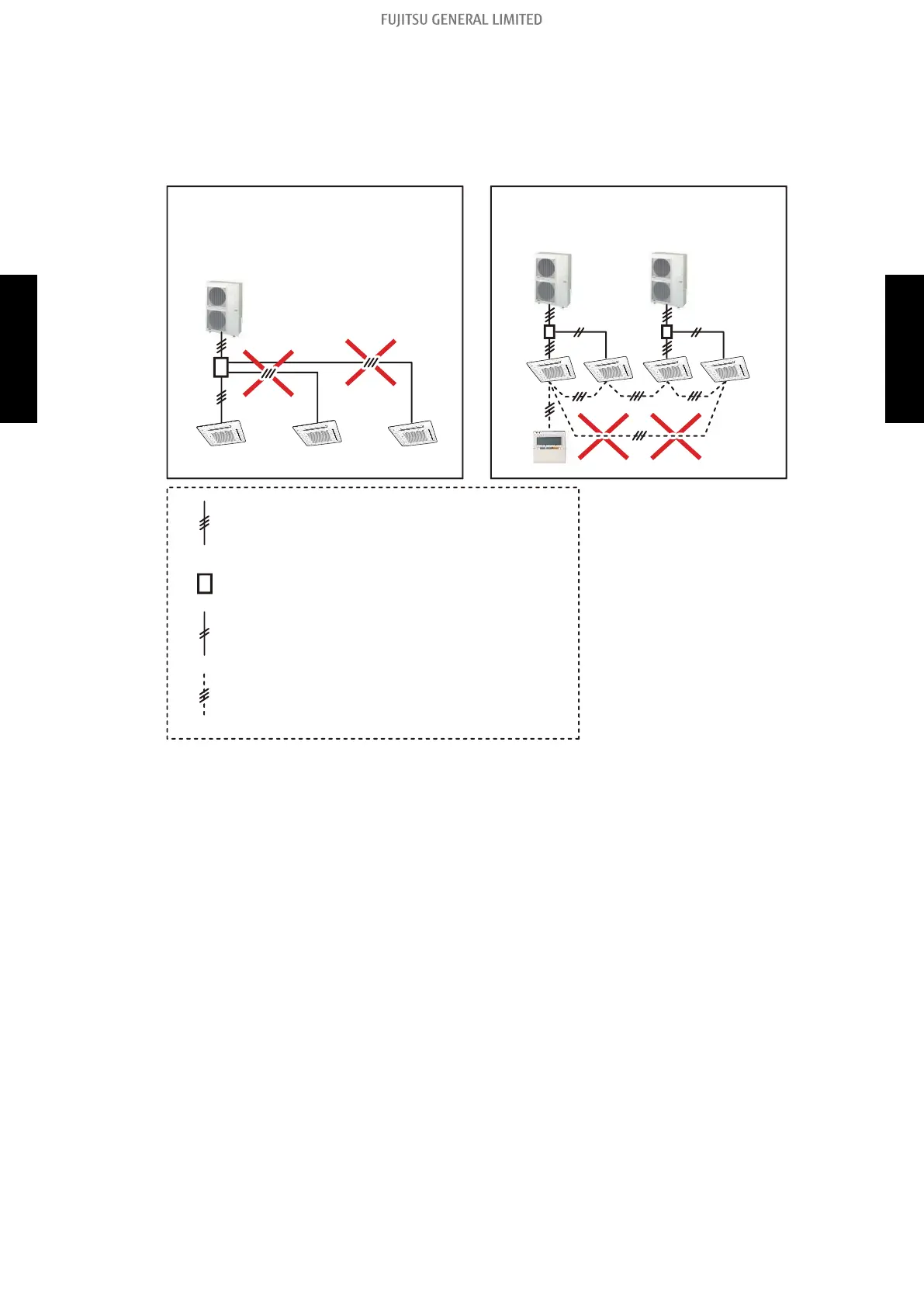

Wiring connection rules
NOTES:
• Connect serial wire only to the primary unit. (If serial wire was connected from primary unit to
secondary unit, the air conditioner will not operate.)
• Do not loop the wiring between remote controllers.
Connect only the power
cable between indoor units.
Do not loop the wiring
between remote controllers.
Outdoor unit – indoor unit connection cable
Junction box (Local purchase)
Indoor unit – indoor unit connection cable
Remote controller cable
- 214 -
4-2. Power supply cable wiring 4. Wiring design
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
