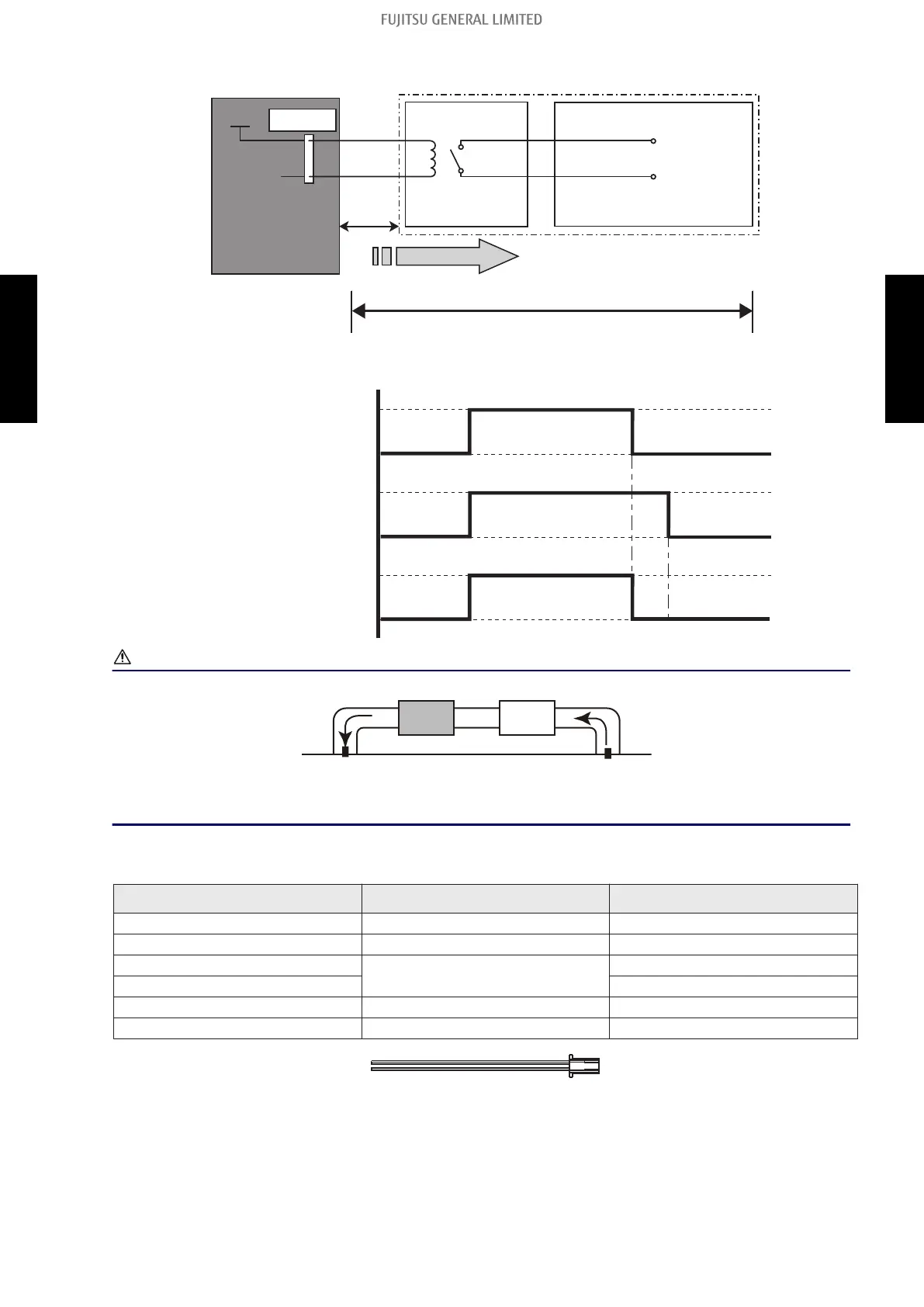

• Circuit diagram example
Locally purchased
Indoor unit
control PCB
Connector
1
12 V
On/Off
2
Signal
Relay
power
supply
Example: Heater
Connected unit
Example:
Relay unit
10 m*
– Relay spec.: Rated DC 12 V, 50 mA to less.
– *: Make the distance from the PCB to the connected unit within 10 m.
On
Off
Operation
Stop
Heating
operation
Indoor unit fan
On
Off
Output signal
1min
CAUTION
• Locate an external heater between the indoor unit and the outlet.
External
Heater
Supply air Return air
Indoor unit
• Be sure to use delay control of a fan.
• Optional part
Indoor unit type Part name Model name
Compact cassette — —
Cassette — —
Slim duct
External control set
UTD-ECS5A
Duct UTD-ECS5A
Floor/Ceiling — —
Ceiling — —
- 231 -
6-1. Indoor unit 6. External input and output
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ARYG36LMLE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Hose diameter	- mm
Product color	Black, Stainless steel
Dehumidifying capacity	- l/h
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	- g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	- °C
Current	20 A
AC input voltage	230 V
Current (cooling)	18.5 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	- kWh
Indoor unit type	Cassette
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit noise level (high speed)	39 dB
Outdoor unit noise level	- dB
