TechNotes D323x-S_D3243-S V1.2 Page 20 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Feature Overview

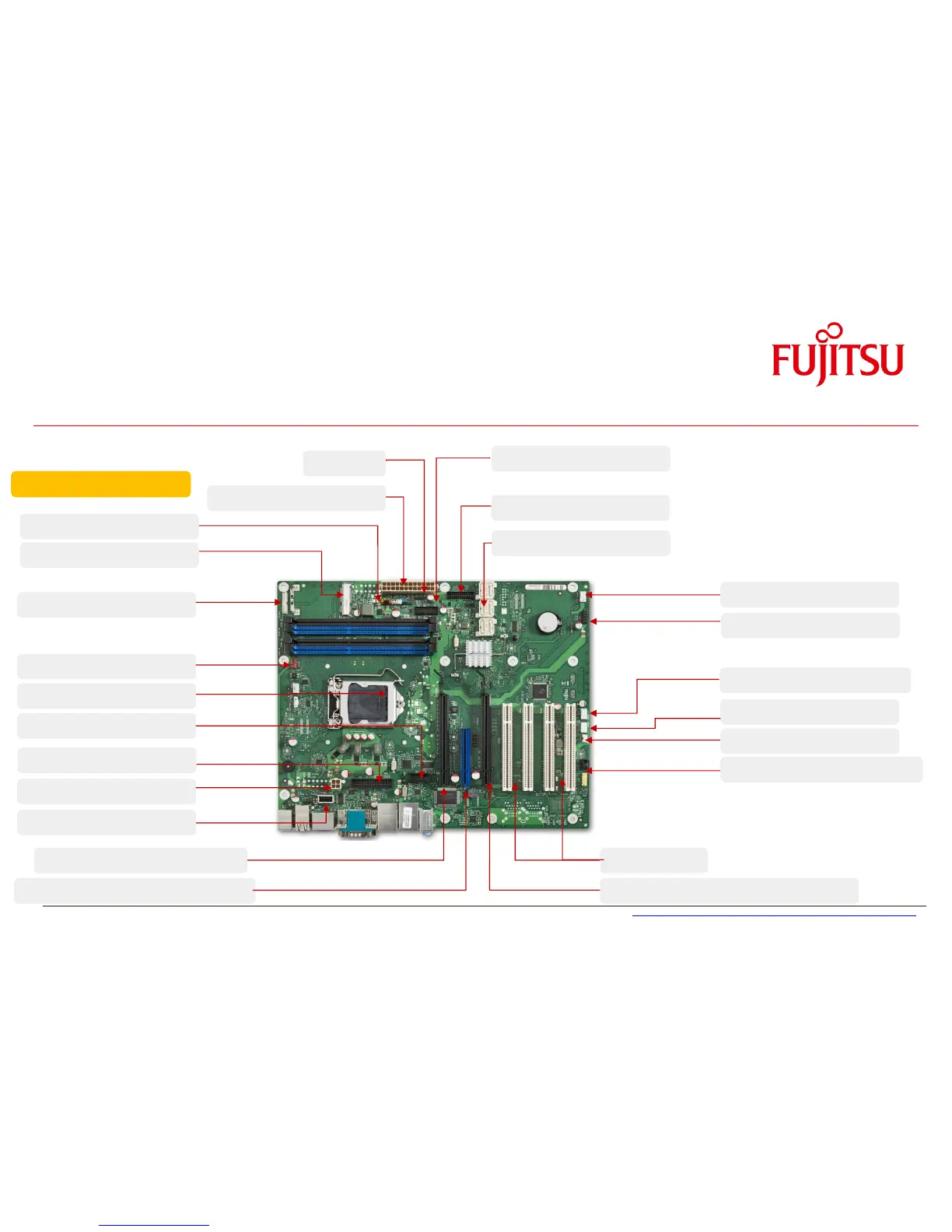

2.10 Onboard components D323x-S
Frontpanel
mSATA Socket
2)
Processor Fan (4 pin)
12V Supply (Processor)
PCIe x16 (16 Lanes, Gen2/3)
PCIe x8 (1 Lane, Gen2, open slot)
24 pin ATX PS
Up to 6 x SATA III
2x USB 3.0 (Frontpanel)
Fan2 (4 pin PWM)
2 x USB 2.0 (Internal)
Intrusion
2)
Frontpanel Audio & S/PDIF
2)
6 Layer PCB
Up to 4 x PCI
1 x PCIe x16 (4 lanes/2lanes, Gen2)
Processor LGA1150
COM Port
8 Bit GPIO
2)
USB 2.0 Socket (Stick)
2)
Fan 4 (4 pin PWM)
1)2)
Fan3 (4 pin PWM / 3 pin)
2)
Parallel Port
1) PSU fan and FAN4 shared!
(BIOS Setup Option)
2) Not available on D3235-S
PSU Fan Control
1)
SCSI LED

Fujitsu D3236-S Specifications
