TechNotes D323x-S_D3243-S V1.2 Page 48 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
System Monitoring
4.5 D3243-S: SystemGuard - Details

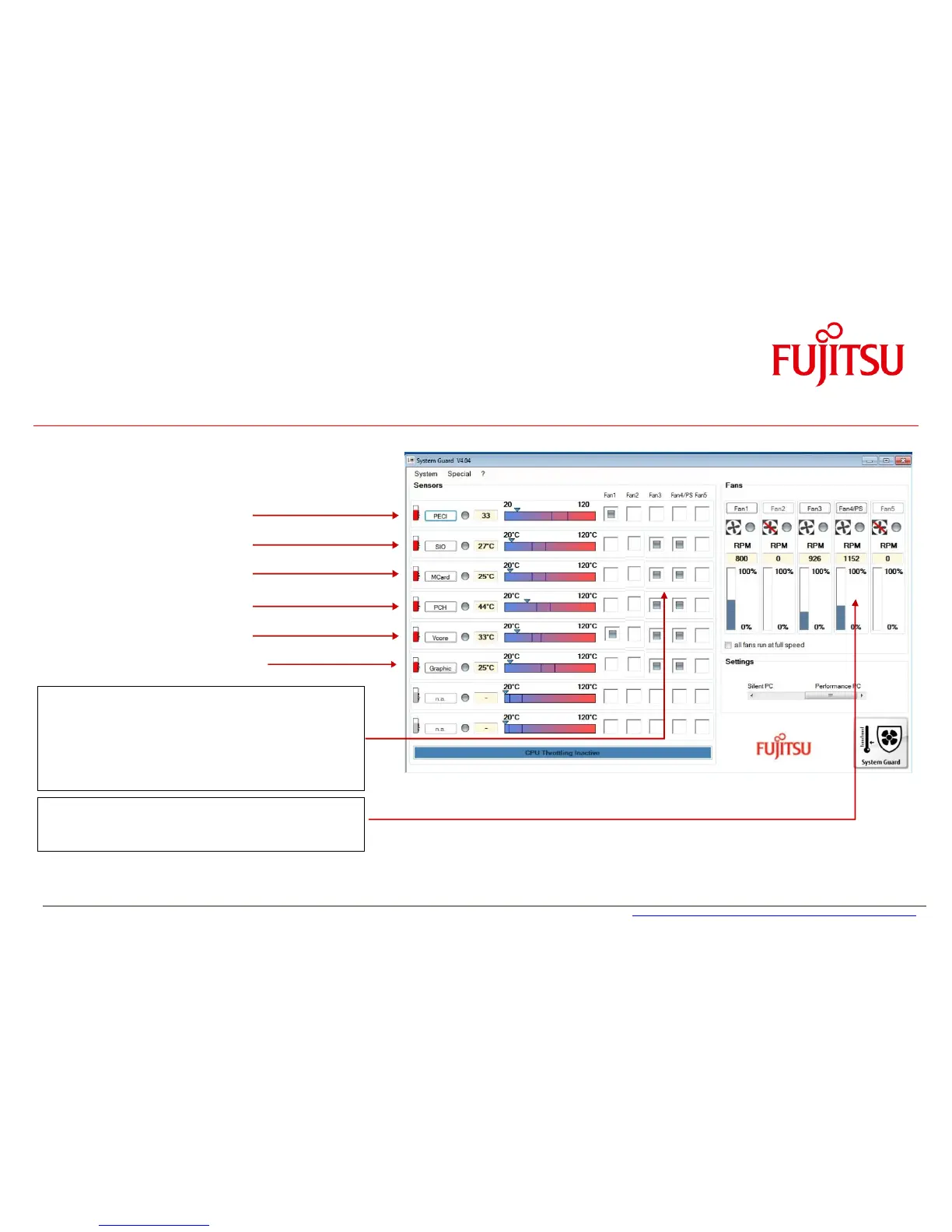

Temperature Sensors
Processor Sensor
1)
Super I/O Sensor
Sensor below Mini-PCIe
PCH Sensor
Core Voltage Regulator Sensor
PCI Express x16 Sensor
Sensor / Fan Matrix
 Indicates which sensor influences the specific fan speed
 Note: Characteristics for FAN1 is always dependent on the CPU
temperature – fully controlled by the system BIOS.
Due to safety reasons the influence of the CPU sensor for FAN1
cannot be disabled!
Note: Fan2 is not available on D3243-S!
Fan4/PS
 Displays the fan speed of the optional power supply fan
(specific PSU option)
1) Note: The temperature value shown for the processor (digital „PECI“ measurement =Platform Environment Control
Interface) does NOT provide the absolute processor temperature, but it is a calculated value based on the relative PECI data.
