TechNotes D323x-S_D3243-S V1.2 Page 66 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Display Options

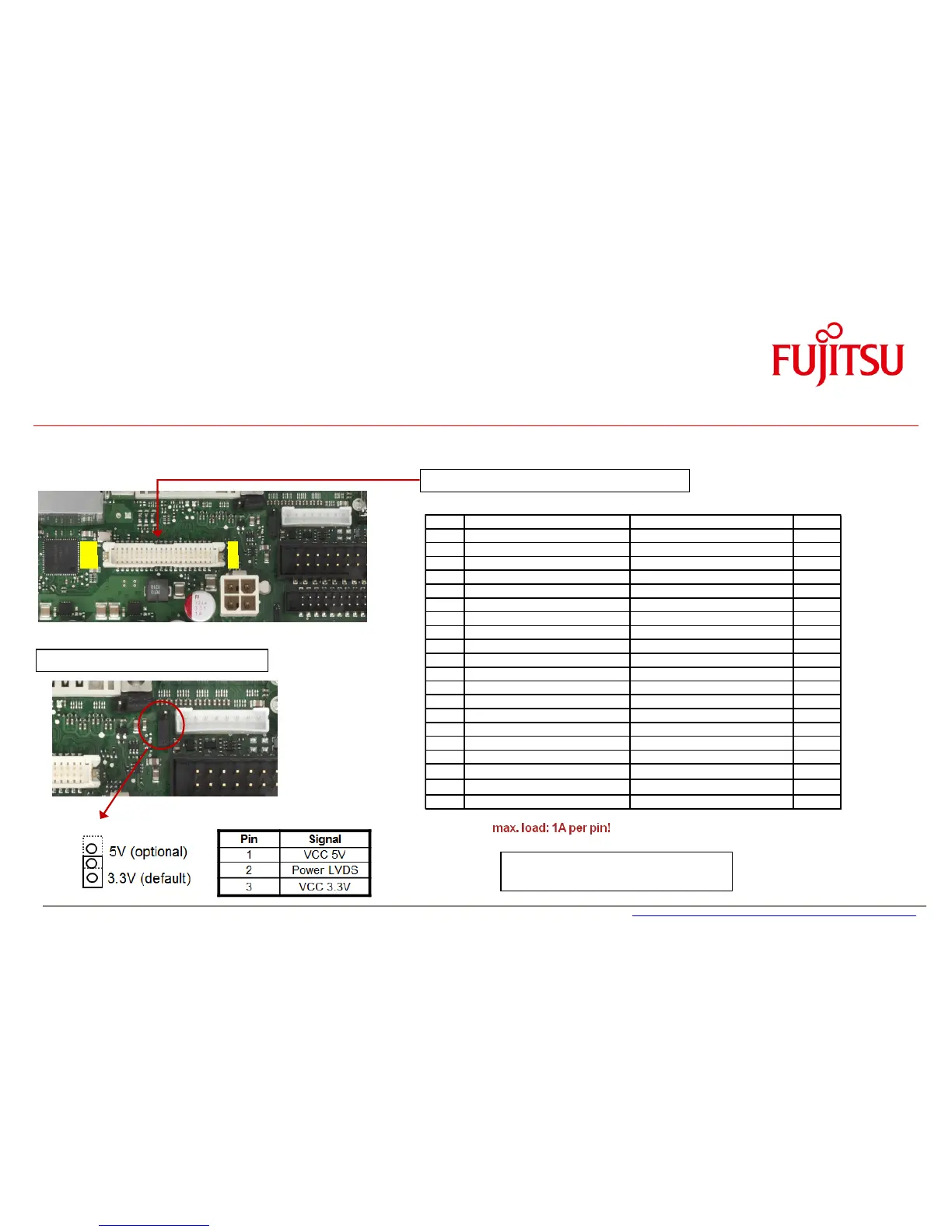

6.10 LVDS Connector Details (D3243-S)
PIN SIGNAL SIGNAL PIN
2 Ground Ground 1
4 LVDS_H3+ (EVEN_3+) LVDS_L3+ (ODD_3+) 3
6 LVDS_H3- (EVEN_3-) LVDS_L3- (ODD_3-) 5
8 Ground Ground 7
10 LVDS_H2+ (EVEN_2+) LVDS_L2+ (ODD_2+) 9
12 LVDS_H2- (EVEN_2-) LVDS_L2- (ODD_2-) 11
14 Ground Ground 13
16 LVDS_H1+ (EVEN_1+) LVDS_L1+ (ODD_1+) 15
18 LVDS_H1- (EVEN_1-) LVDS_L1- (ODD_1-) 17
20 Ground Ground 19
22 LVDS_H0+ (EVEN_0+) LVDS_L0+ (ODD_0+) 21
24 LVDS_H0- (EVEN_0-) LVDS_L0- (ODD_0-) 23
26 Ground Ground 25
28 LVDS_CLK_H+ (CLK_EVEN+) LVDS_CLK_L+ (CLK_ODD+) 27
30 LVDS_CLKH- (CLK_EVEN-) LVDS_CLK_L- (CLK_ODD-) 29
32 Ground Ground 31
34 DDC-Data DDC-Clock 33
36
LCD-Power
1)
LCD-Power
1)
35
38 Ground
LCD-Power
1)
37
40 LCD_Power_Enable Ground 39
1) selectable via Jumper
LVDS Connector: Hirose DF13-40 (or compatible)
LVDS operating voltage selector jumper
2.
1.
Note: LVDS pinning is compatible to
D2703-S / D2963-S / D3003-S / D3313-S
40.
39.
