TechNotes D323x-S_D3243-S V1.2 Page 47 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
System Monitoring
4.4
D323x-S: SystemGuard - Details
Temperature Sensors
Processor Sensor
1)
Super I/O Sensor
Sensor PCIe Graphics
PCH Sensor
Memory Sensor
Core Voltage Regualtor Sensor
Sensor / Fan Matrix
Indicates which sensor influences the specific fan speed
Note: Characteristics for FAN1 is always dependent on the CPU
temperature fully controlled by the system BIOS.
Due to safety reasons the influence of the CPU sensor for FAN1
cannot be disabled!
Fan4/PS
Displays the fan speed of the optional power supply fan
(specific PSU option)
1) Note: The temperature value shown for the processor (digital „PECI“ measurement =Platform Environment Control
Interface) does NOT provide the absolute processor temperature, but it is a calculated value based on the relative PECI data.

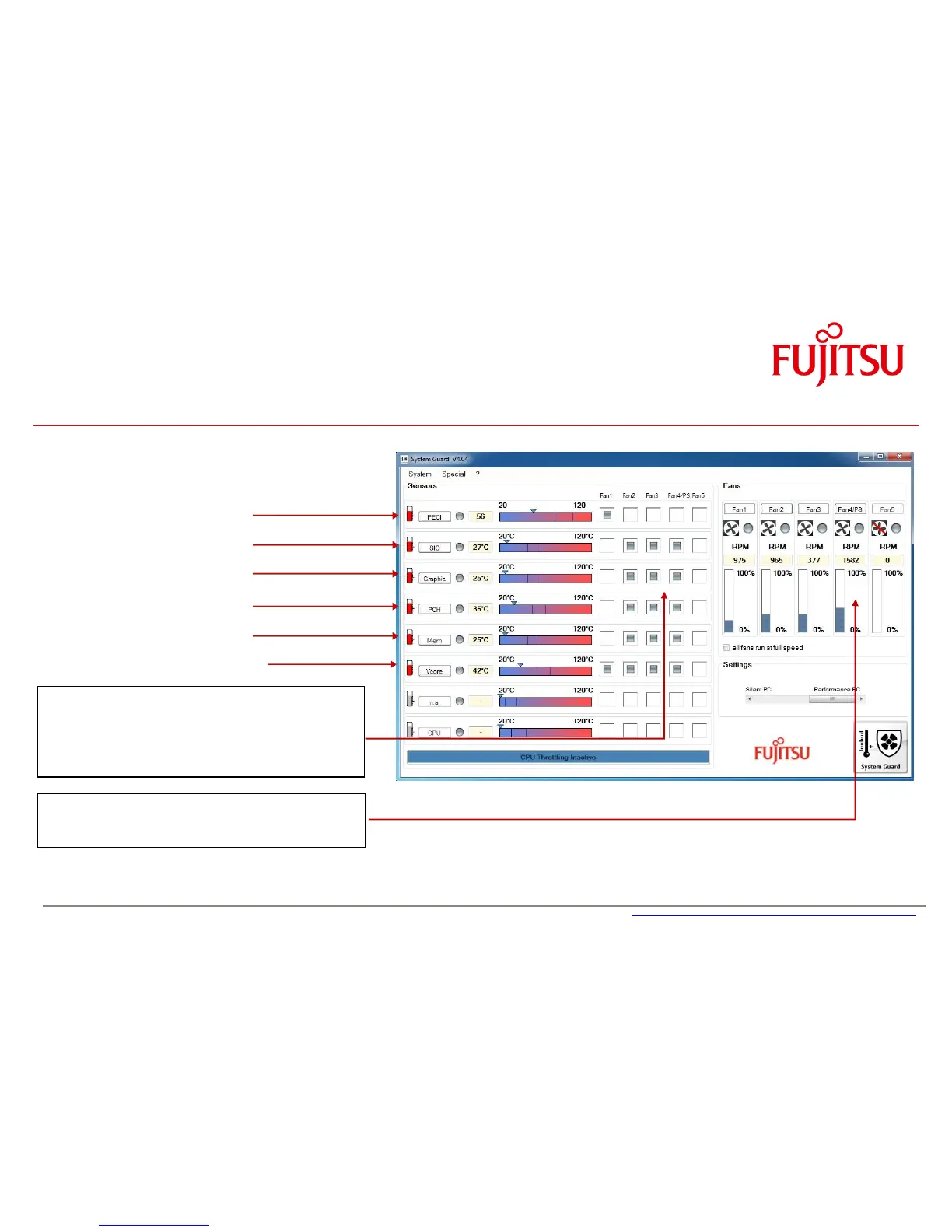

(Note: Sample screenshot only; data may differ for specific mainboard model)
