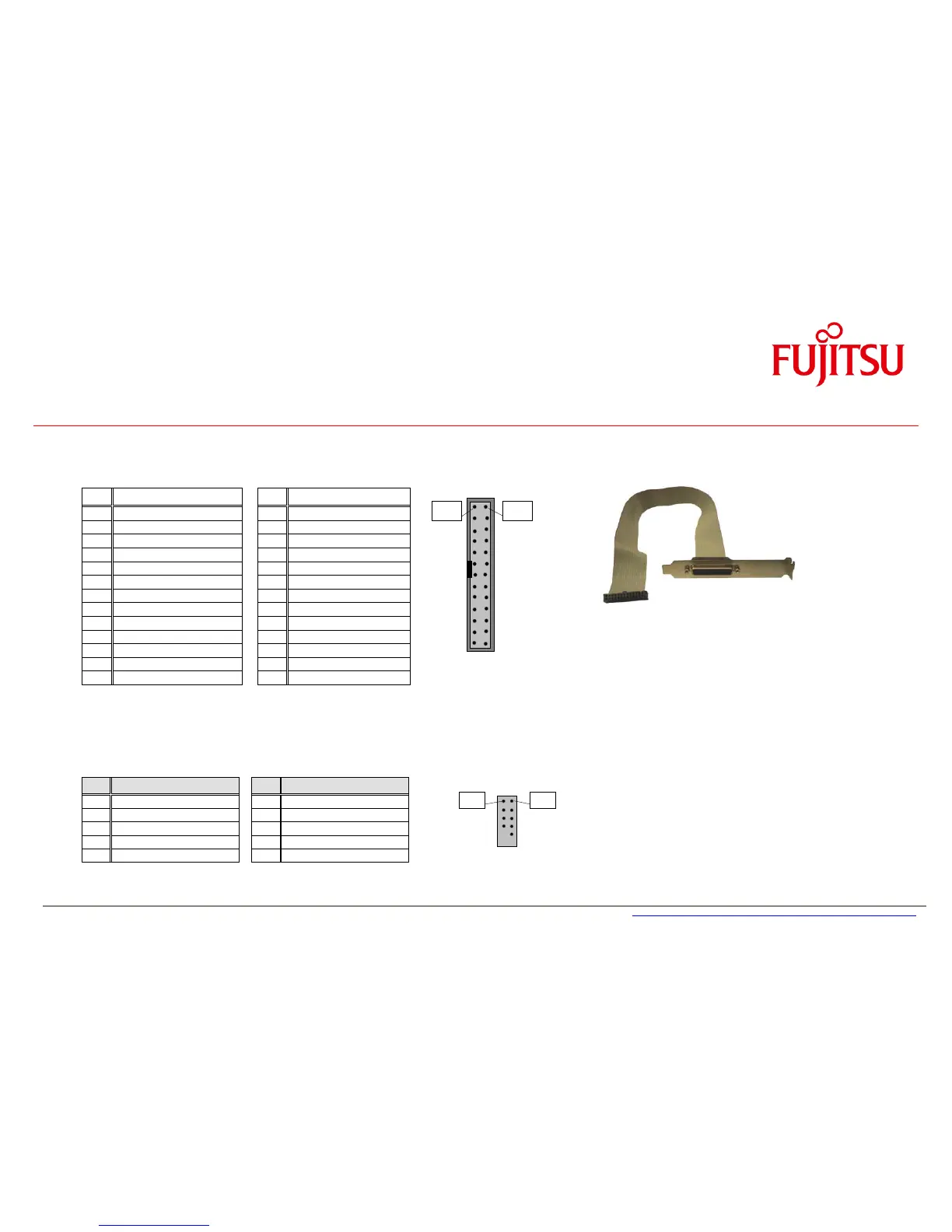

TechNotes D323x-S_D3243-S V1.2 Page 26 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Interfaces & Connectors
3.4
Internal Parallel Port Connector
Pin
Signal
Pin
Signal
1
Strobe
2
AutoFD
3
Data0
4
Error
5
Data1
6
Init
7
Data2
8
Sel_L
9
Data3
10
GND
11
Data4
12
GND
13
Data5
14
GND
15
Data6
16
GND
17
Data7
18
GND
19
ACK
20
GND
21
Busy
22
GND
23
Empty
24
GND
25
Select
26
GND
3.5
Internal USB2.0 Connector (2 Ports)
Pin
Signal
Pin
Signal
1
VCC AUX
2
VCC AUX
3
Data negative Port X
4
Data negative Port Y
5
Data positive Port X
6
Data positive Port Y
7
GND
8
GND
9
Key
10
Not connected
optional Parallelport cable
with ATX bracket
Pin 2
Pin 1
Pin 1
Pin 2
