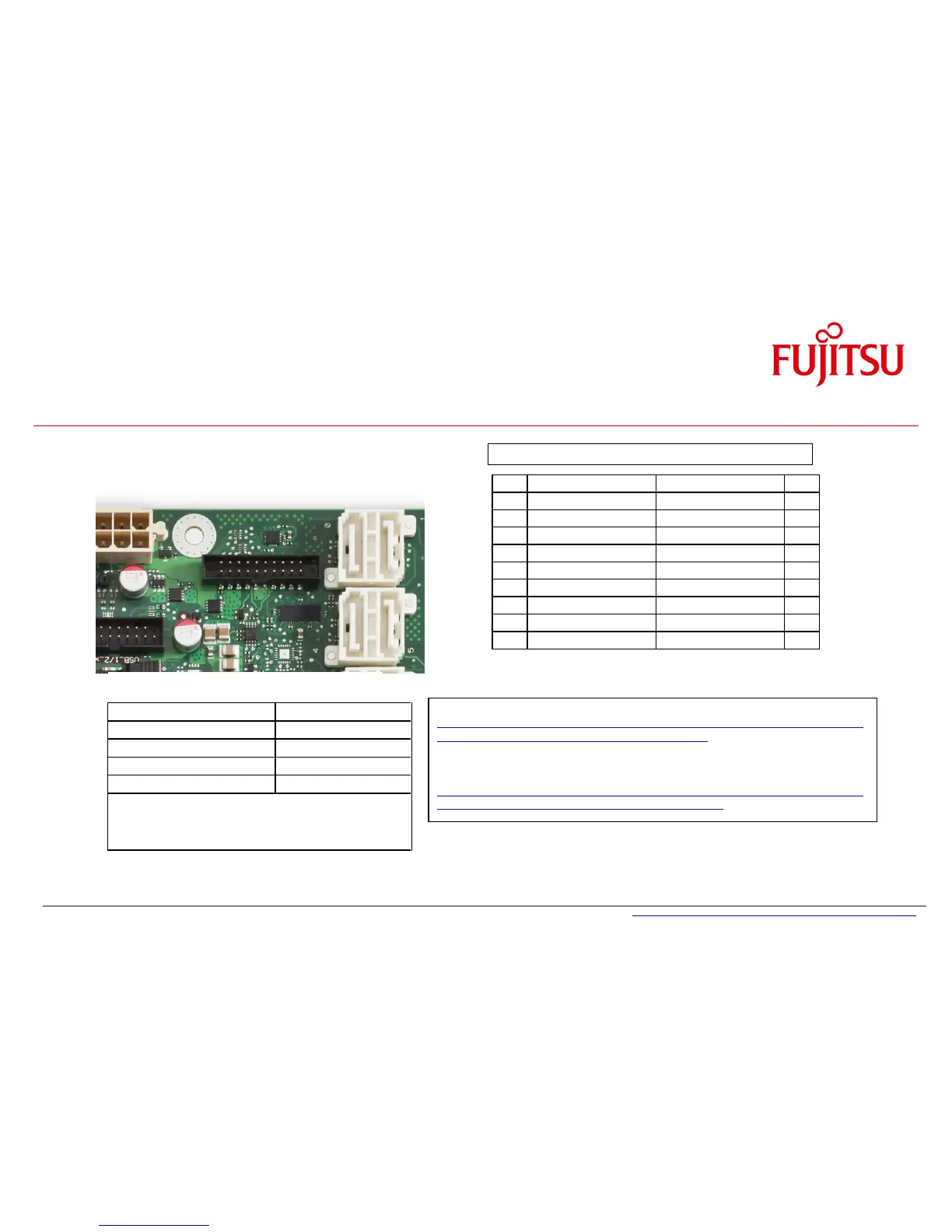

TechNotes D323x-S_D3243-S V1.2 Page 37 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Interfaces & Connectors
3.20
GPIO (Feature Connector)
Feature Connector: CompuPack R-DRK2-20-S3-SMT
1
GPI/O_0
GPI/O_1
2
3
GPI/O_2
GPI/O_3
4
5
GPI/O_4
GPI/O_5
6
7
GPI/O_6
GPI/O_7
8
9
VCC_3.3V
GND
10
11
VCC_3.3V
VCC_5Vaux
12
13
reserved
GND
14
15
reserved
GND
16
17
GND
VCC_5V
18
19
VCC_12V
VCC_12V
20
Note: Current max. 1.5 A per power pin!
Parameter
Range
GPI/O Input Low Voltage
-0.5V … 0.8V
GPI/O Input High Voltage
2V … 3.3V
GPI/O Output Low Voltage
max. 0.7V
GPI/O Output High Voltage
min. 2.5V
Note: max. load per GPI/O pin: 10mA
(overall current for all GPI/O pins must be < 85mA)
Each GPI/O pin has an integrated serial resistor of 150 Ohm
GPIO access is provided via the SM-Bus controller PCA9554A
ftp://ftp.ts.fujitsu.com/pub/Mainboard-OEM-Sales/Products/Mainboards/Industrial&ExtendedLifetime/
D323x-S/Documentation/Specifiations/GPIO_Chip_PCA9554a.pdf
Note: SM-Bus address: 0x78h (8-bit)
For Windows OS, the FTS BMC API provides easy access to the GPIO:
ftp://ftp.ts.fujitsu.com/pub/Mainboard-OEM-Sales/Products/Mainboards/Industrial&ExtendedLifetime/
D323x-S/IndustrialTools_D323x-S/BMC_Management-Controller-API/
2
1
(Connector location shown for D3231-S/D3236-S)
