D323x-S_D3243-S
V1.2
Page
63
of
98
http://www
.
fujitsu.com/fts/product
s/computing/pc/accessori
es/mainboards
m
ainboards

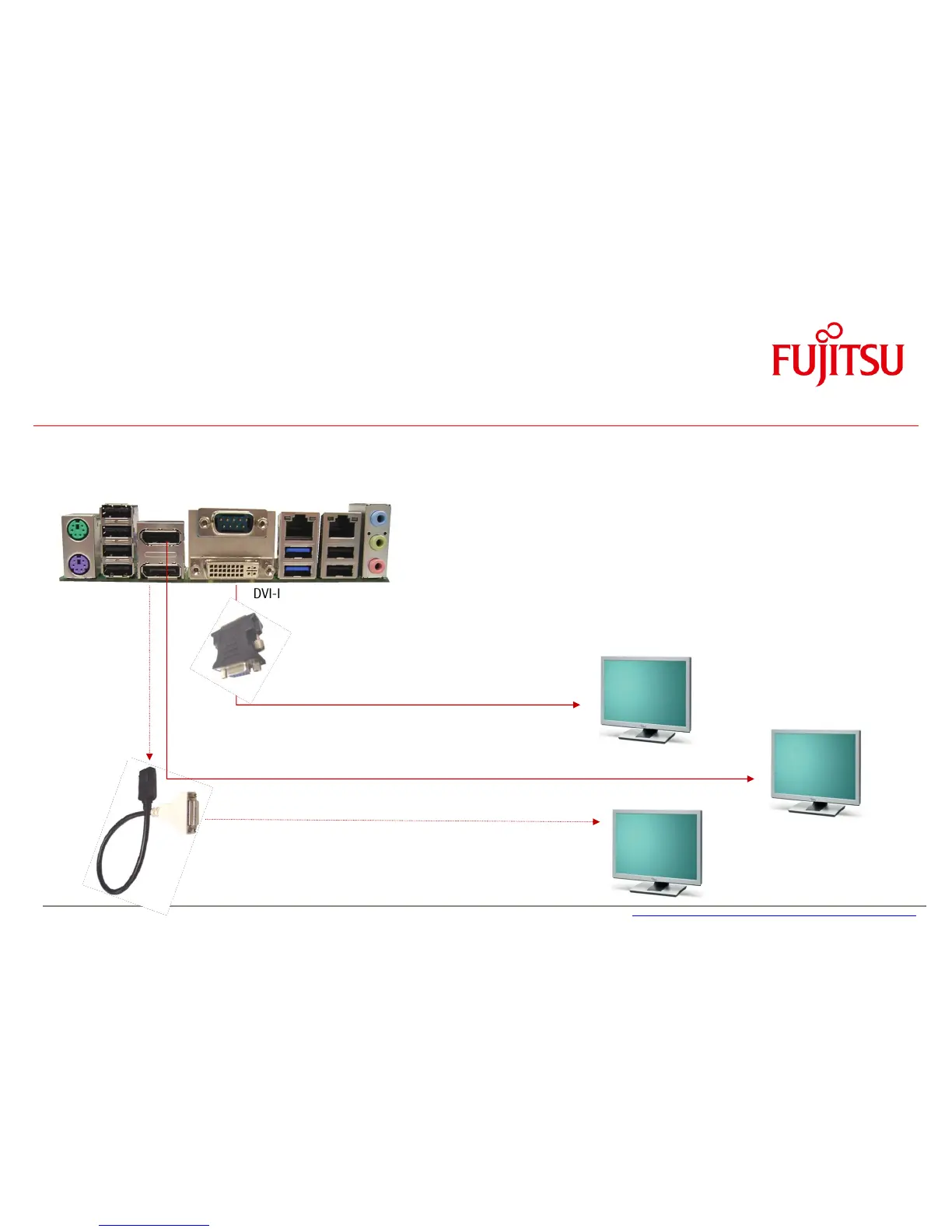

Displa
y Options
6.7
Dual Digital plus VG
A Output (3 Displays)
D
V
I
-
I
DP (or optional DVI via con
verter cable)
Max. three independent
displays / Ext
ended Desktop
Digital (DVI or DP) Monitor
Digital (DVI or DP) Monitor
Analog (VGA) Monitor
DisplayPort-
DVI-Conv
erter
Cable (optional)
VGA
DP (or optional DVI via con
verter cable)
62
64
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Instructions
6
2 Feature Overview
7
Basic Layout D3231-S
11
Basic Layout D3235-S
12
Basic Layout D3236-S
13
Basic Layout D3243-S
14
Block Diagram D3231-S & D3236-S
15
Block Diagram D3235-S
16
Block Diagram D3243-S
17
External Connectors D3231-S / D3236-S & D3243-S
18
External Connectors D3235-S
19
Onboard Components D323X-S
20
Onboard Components D3243-S
21
Summary: Feature Differences D323X-S
22
I/O-Shield
23
3 Interfaces & Connectors
24
Frontpanel Connector [Updated]
24
Internal Serial (COM) Port Connector
25
External Serial (COM) Port Connector
25
Internal Parallel Port Connector
26
Internal USB2.0 Connector (2 Ports)
26
Internal USB3.0 Connector (2 Ports)
27
External USB3.0 Connector
27
PS/2 Keyboard Port
28
PS/2 Mouse Port
28
LAN Connector
29
DVI-I Connector
29
Displayport V1.2 Connector
30
Serial ATA Connectors
30
Msata Pinout / Mini-Pcie Pinout [Updated]
31
Msata / Mini-Pcie BIOS Setup Options [New]
32
Fan Connectors
33
Power Supply Fan Connector
33
Rear Audio / Frontpanel Audio Connector [Updated]
34
S/PDIF Connector
36
GPIO (Feature Connector)
37
Power Supply Connector D323X-S (Multirail)
38
Additional Power Supply Connector D323X-S (12V for Processor)
38
Power Supply Connectors D3243-S (ATX Multirail or Single 12V Operation) [Updated]
39
D3243-S ATX Multirail Operation [Updated]
39
D3243-S Single 12V Operation [Updated]
40
D3243-S Single 12V Operation - Min / Max Config [New]
41
Chassis Intrusion [Updated]
42
4 System Monitoring
43
D3236-S / D3231-S: Temperature Sensors and Fan Connectors
44
D3243-S: Temperature Sensors and Fan Connectors
45
D323X-S / D3243-S: Systemguard
46
D323X-S: Systemguard - Details
47
D3243-S: Systemguard - Details
48
Silentfanconfigmanager - Customize System Monitoring Settings
49
Components for Continous 24/7 Operation @ +60°C
50
Capacitor Endurance Time Comparison
51
Temperature Reference Points D323X-S
52
Temperature Reference Points D3243-S (Front)
53
Temperature Reference Points D3243X-S (Rear)
54
BMC - BIOS Default Settings D323X-S
55
BMC - BIOS Default Settings D3243-S
56
5 Power Supply
57
ATX Power Supply / Single 12V Supply [Updated]
57
6 Display Options
58
Summary: Video Output Options D323X-S / D3243-S
58
VGA Output
59
DVI Output
60
HDMI Output
61
Displayport Output [Updated]
62
Dual Digital Plus VGA Output (3 Displays)
63
Three Digital Outputs (3 Displays)
64
LVDS Display & Backlight Inverter (D3243-S)
65
LVDS Connector Details (D3243-S)
66
Backlight Inverter Connector Details (D3243-S)
67
LVDS Timing & Screen Resolution (D3243-S)
68
LVDS Tool [Updated]
71
LVDS - Influence on Graphics Output D3243-S [New]
72
LVDS Cabling Reference
74
LVDS Sample Cabling for Auo-G150
75
7 Operating System Support
76
Support for Windows 7 / Windows 8.1
77
Linux Support [Updated]
78
8 Mainboard Tools
79
Common Mainboard Tools [Updated]
79
BIOS Boot Logo Tool
79
Editcmos
79
Oemident
79
Systemguard
80
Industrial Tools
81
Silentfanconfig-Manager
81
LVDS Tool
81
Windows System-Monitoring API (BMCAPI)
82
Linux System-Monitoring Driver ("LM-Sensors")
82
9 Known Issues & Important Notes
83
Driver Support for MS Windows XP / MS Win8 [Updated]
83
Memory Issue
83
Possible Power Supply Issue
83
SATA Interface (Intel Chipset Limitation)
84
SATA / Esata Signal Quality [New]
84
Graphics Driver: Support for Collage Mode
84
