TechNotes D323x-S_D3243-S V1.2 Page 45 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
System Monitoring
4.2

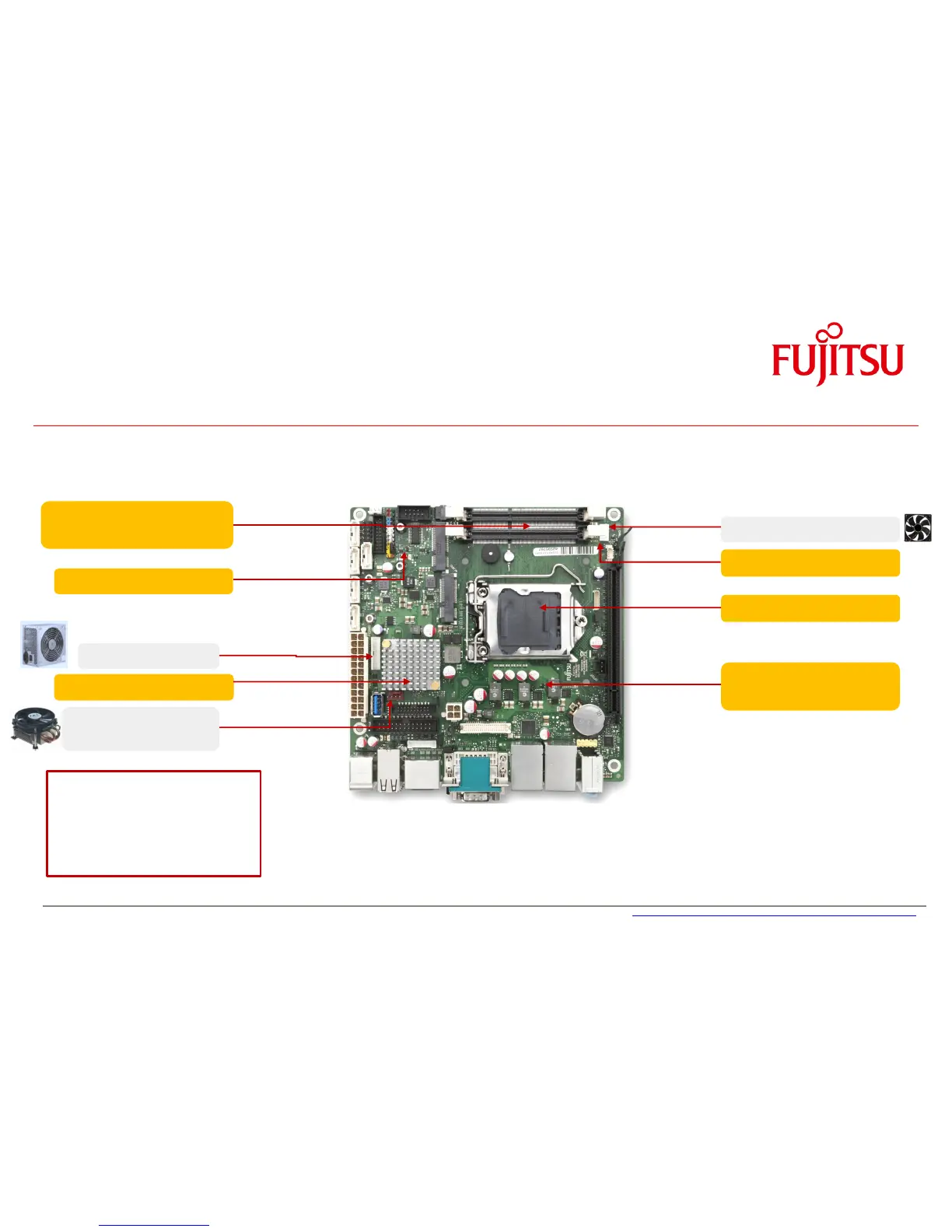

D3243-S: Temperature Sensors and Fan Connectors
PSU Fan Control
Processor
(Fan1; PWM)
1)
Sensor “MCard
Fan 3 (PWM)
1) 2)
Sensor “PCIe Graphics”
Note: Do not attach more than one fan per connector!
Remove or connect fans only when unit is powered off!
Sensor “Super I/O (SIO)
(rear side below memory)
Sensor “PCH
1) 1.5A continuous / 3A peak current
2) FAN 3:
PWM or 3-Wire
Selectable via BIOS Setup
Default = PWM)
Sensor “Processor (PECI)
Sensor “Core Regulator
(VCore)
