3.3 Cleaning the Rollers
3
DAILY CARE

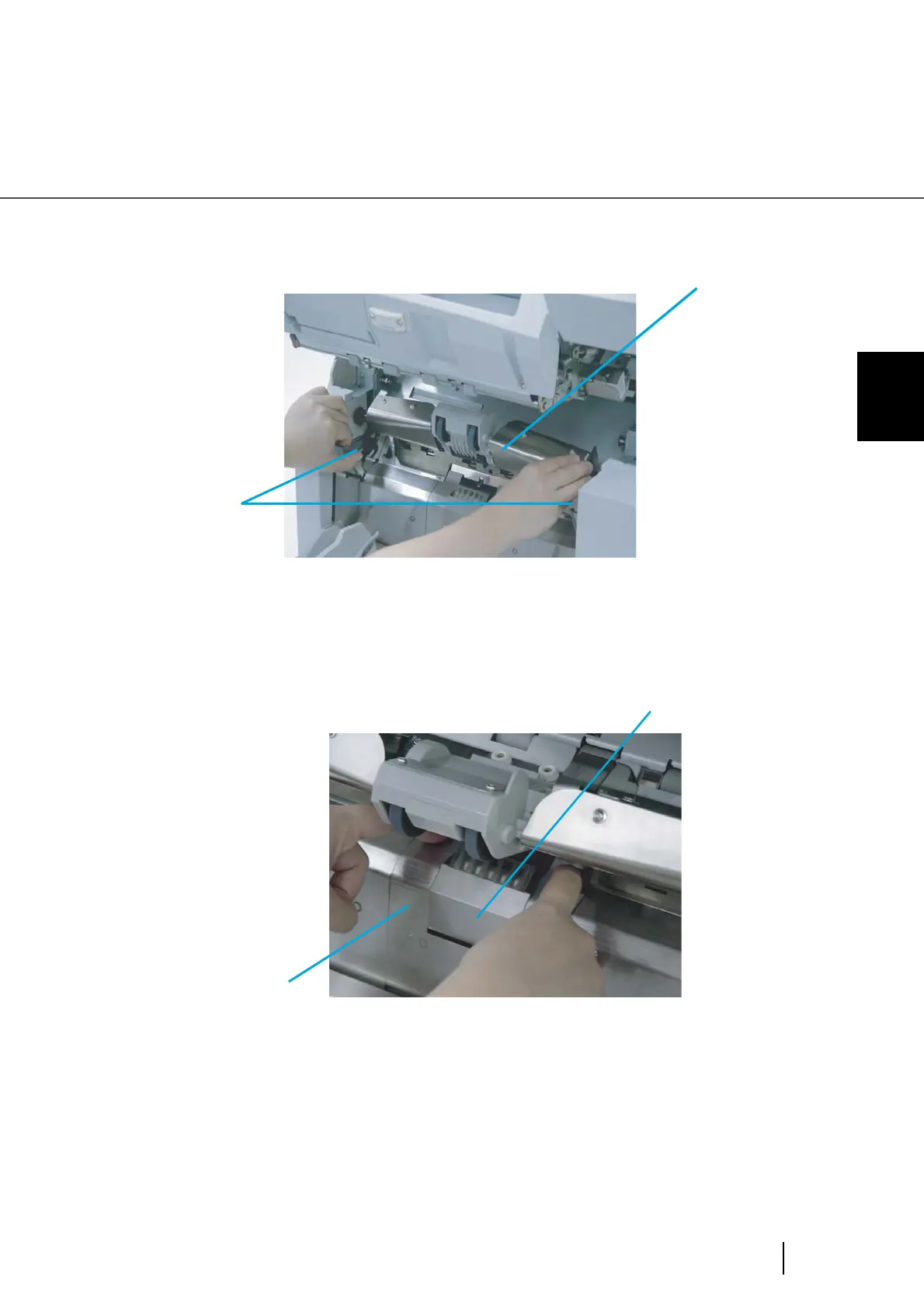

2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
3. Pressing down on the upper part of the Guide plate with your fingers at
the two positions shown and then pull the plate toward you to remove it.
ADF upper sheet guide
ADF release lever
Pad ASSY
Guide plate
