4.5 Replacing the Brake Roller Unit
4.5 Replacing the Brake Roller Unit

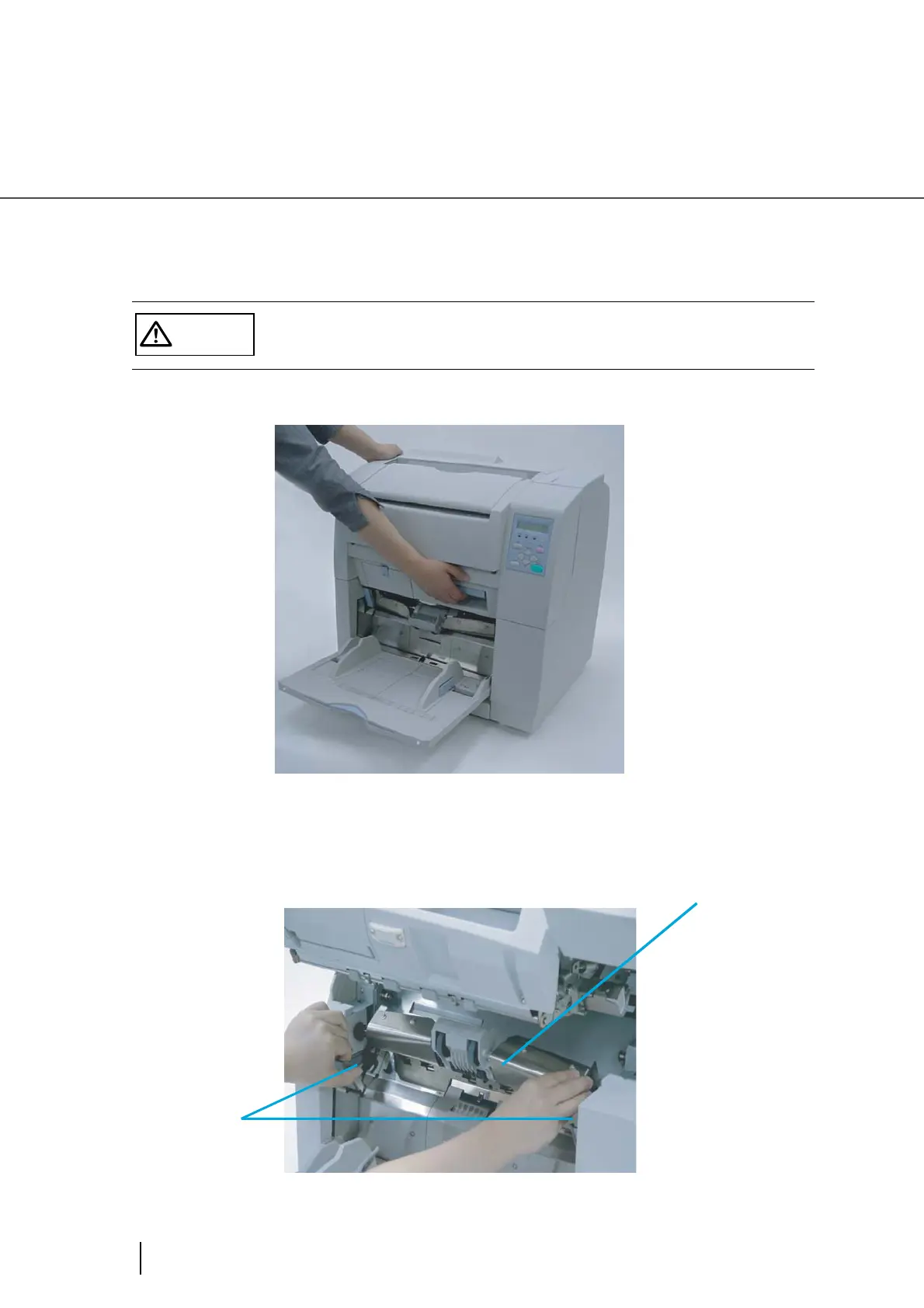

1. Remove documents from the stacker. Pull up the lever on the right front
of the Upper transport and then raise it.
2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
CAUTION
Raise the Upper transport unit fully, then lower it to engage lock before you
put your hands inside of the scanner.
ADF upper sheet guide
ADF release lever
