4.5 Replacing the Brake Roller Unit
4
REPLACEMENT OF CONSUMABLES

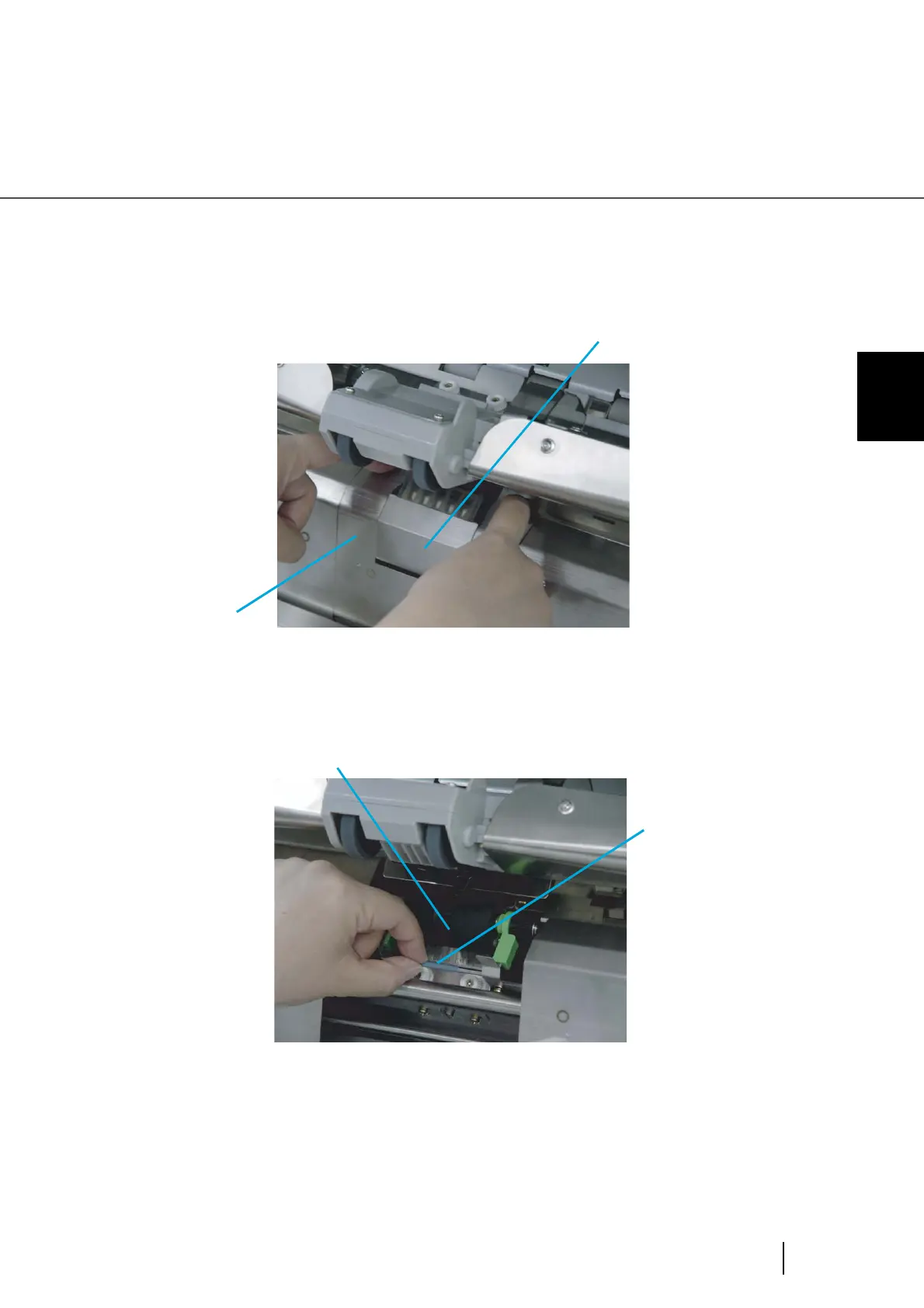

3. Press down on the upper part of the Guide plate with your fingers at the
two positions shown and rotate the plate toward you to remove it.
4. Turn the bail of the Brake roller upward and release the lock.
Pad ASSY
Guide plate
Bail
Brake roller
