6-7
6.4 Print Prohibited Area
6
ADF DOCUMENT SPECIFICATIONS
6.4 Print Prohibited Area
If there is printing in area A, the document size may be mis-detected. If there is printing in area B

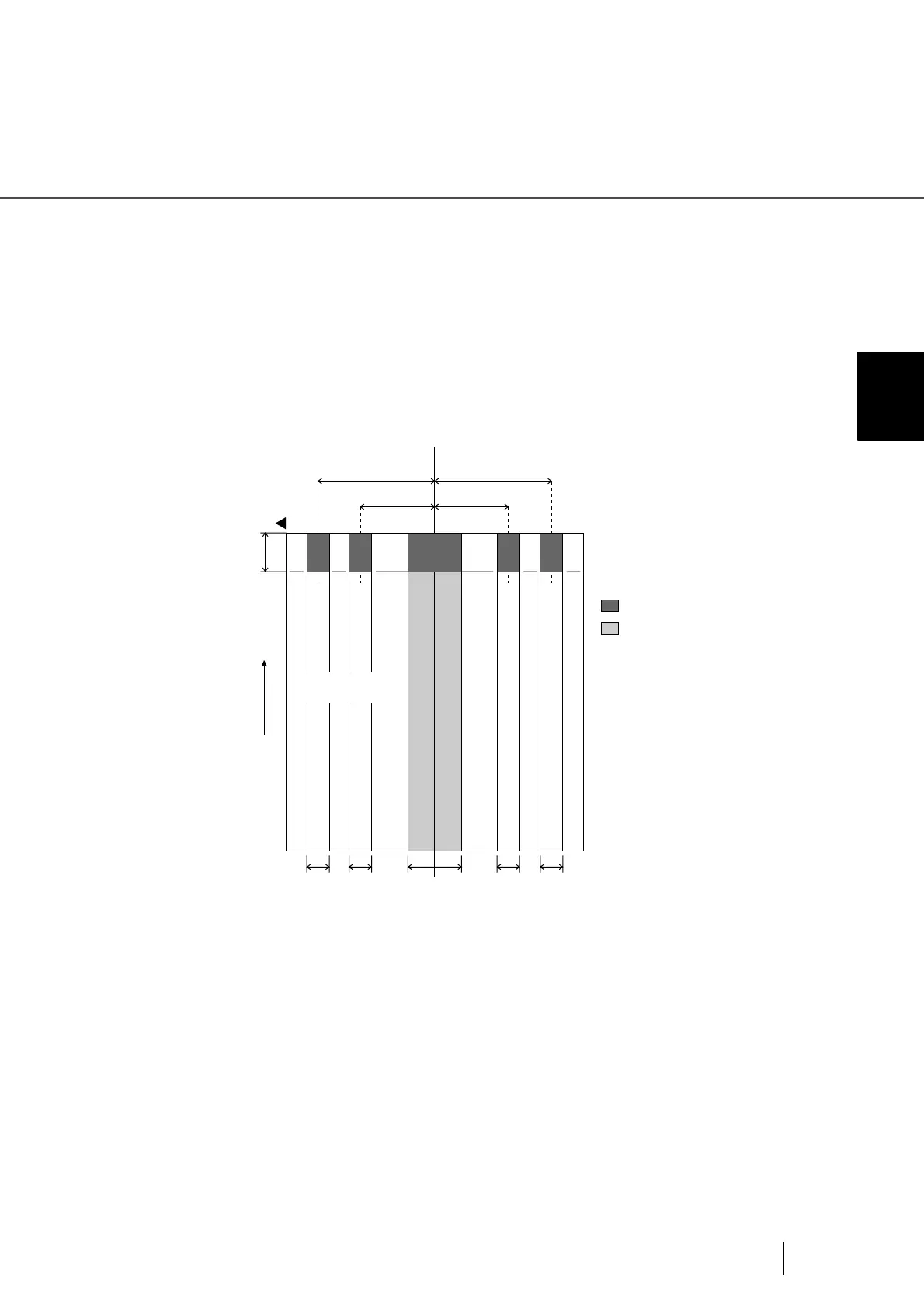

of a document, it may cause double-feed errors. The following figure shows print prohibited areas
on a document. If double-feed detection is to be enabled, it is recommended that you avoid
printing in these areas. These restrictions must be considered when designing forms and
documents.
For the details of double-feed detection, please refer to "APPENDIX 2 DOUBLE-FEED
(MULTI-FEED) DETECTION CONDITIONS" on page AP-2.
113 (4.45") 134 (5.28")
79 (3.12") 96 (3.78")
10
(0.39")
15
Document feeding direction
(Unit : mm)
Top of document
Bottom of document
Center of document
10
(0.39")
34 (1.34")
10
(0.39")
10
(0.39")
: Area A
: Area B
Reading
reference
position
Front side
Reading surface
