4-11
4.4 Replacing the Pick Roller Unit
4
REPLACEMENT OF CONSUMABLES
4. Install a new Pick roller unit in the reverse order of its removal.
5. Lower the ADF upper sheet guide carefully.
6. Lift the Upper transport unit to release the safety lock, then lower the unit
carefully and push the unit to close it completely.
7. Clear the Pick roller counter.
Please refer to the section “7.3 Setup Mode Details”, “ 9. Abrasion counter
(Abrasion CNT) reset ” on page 7-33.
HINT

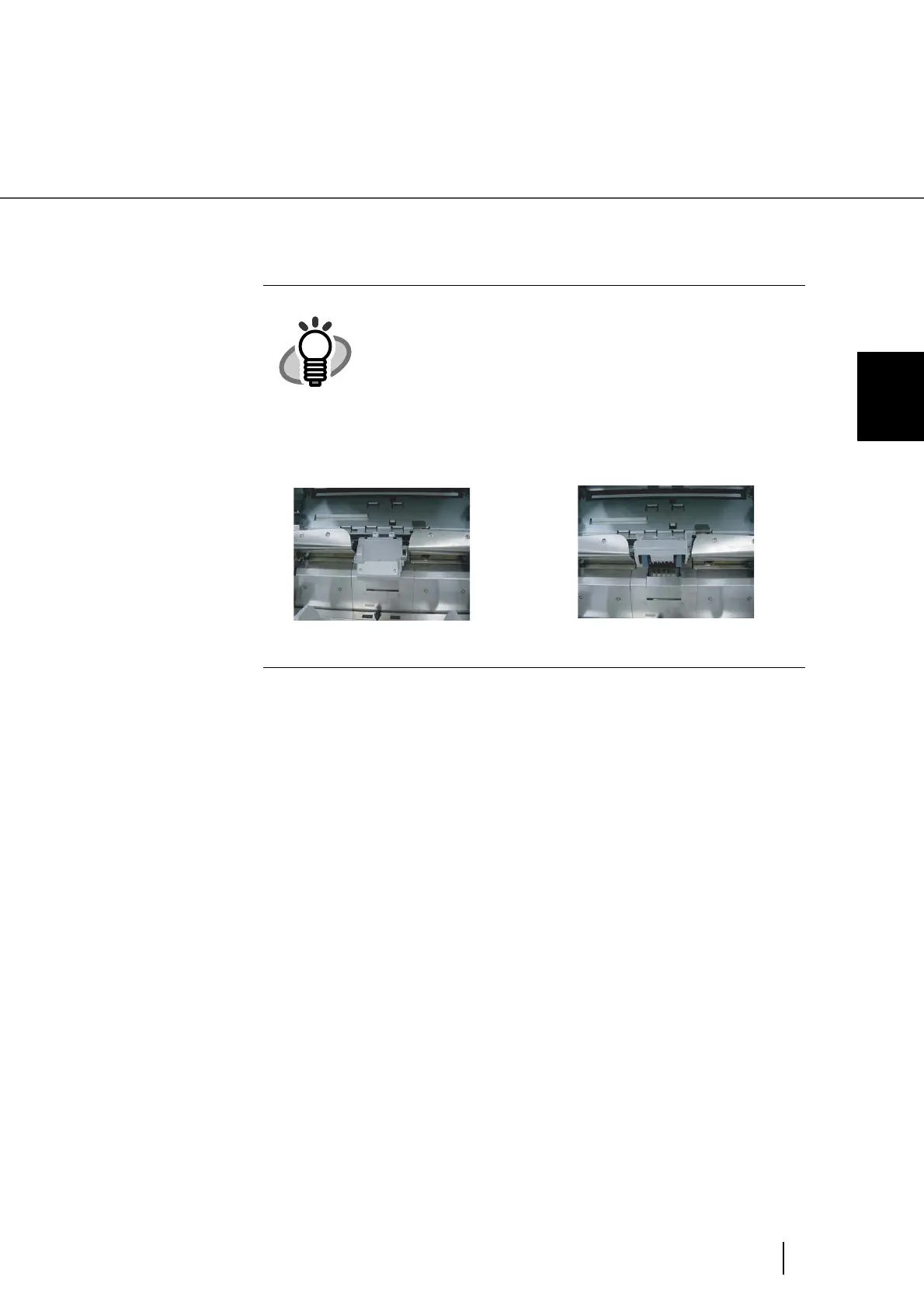

When attaching the Pick roller unit, hold the unit as shown.
Engage the drive ring onto the drive shaft. Move left and align
the clutch ring with the shaft and move right to engage.
Incorrect installation Correct installation
To Next Page
