Fujitsu fi-4860C2 User Manual

4-10
4.4 Replacing the Pick Roller Unit

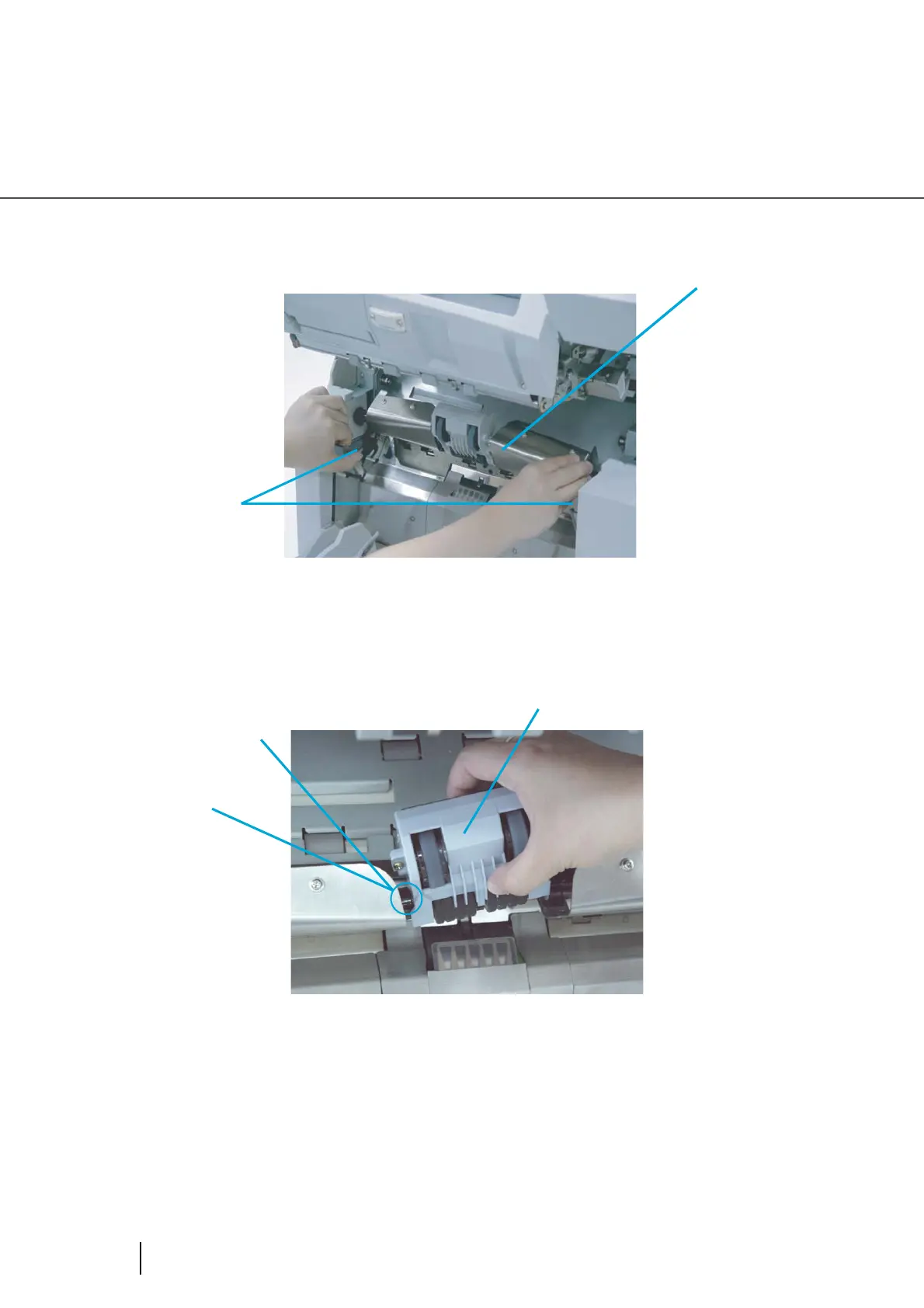

2. While pulling the ADF lever toward you, lift up the ADF upper sheet guide.
3. Lift up the Pick roller unit a little. Slide the Pick roller unit to the left to
disengage the clutch ring from the shaft.
ADF upper sheet guide
ADF release lever
Shaft
Ring
Pick roller unit
