4.3 Replacing the Pad ASSY
4
REPLACEMENT OF CONSUMABLES

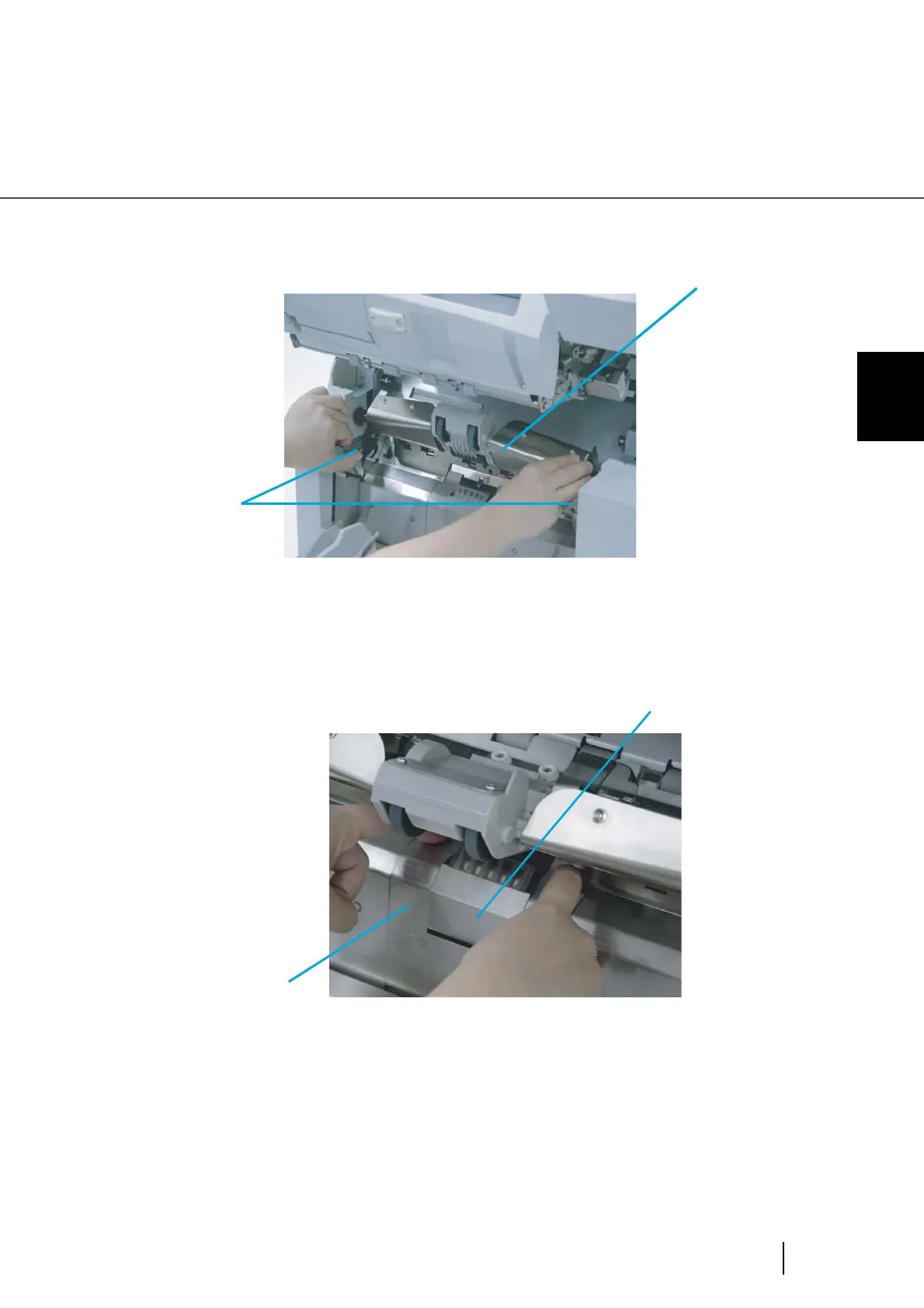

2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
3. Press down on the upper part of the Guide plate with your fingers at the
two positions shown and then rotate the plate toward you to remove it.
ADF upper sheet guide
ADF release lever
Pad ASSY
Guide plate
