4-7
4.3 Replacing the Pad ASSY
4
REPLACEMENT OF CONSUMABLES

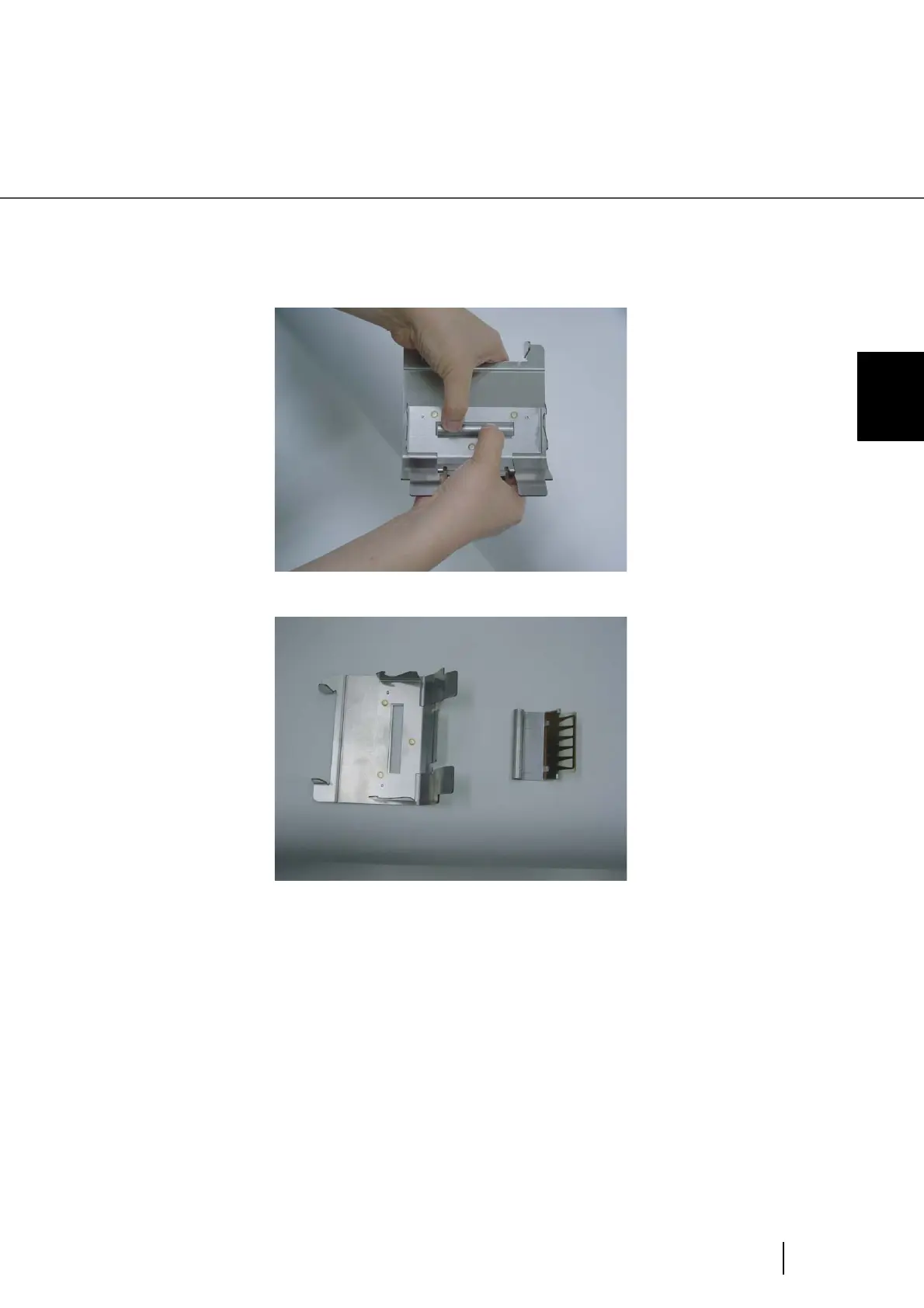

4. Remove the Pad ASSY from the Guide plate by pushing the removal metal
scroll down and then release hooks.
