4.7 Replacing the Back-side Lamp
4
REPLACEMENT OF CONSUMABLES

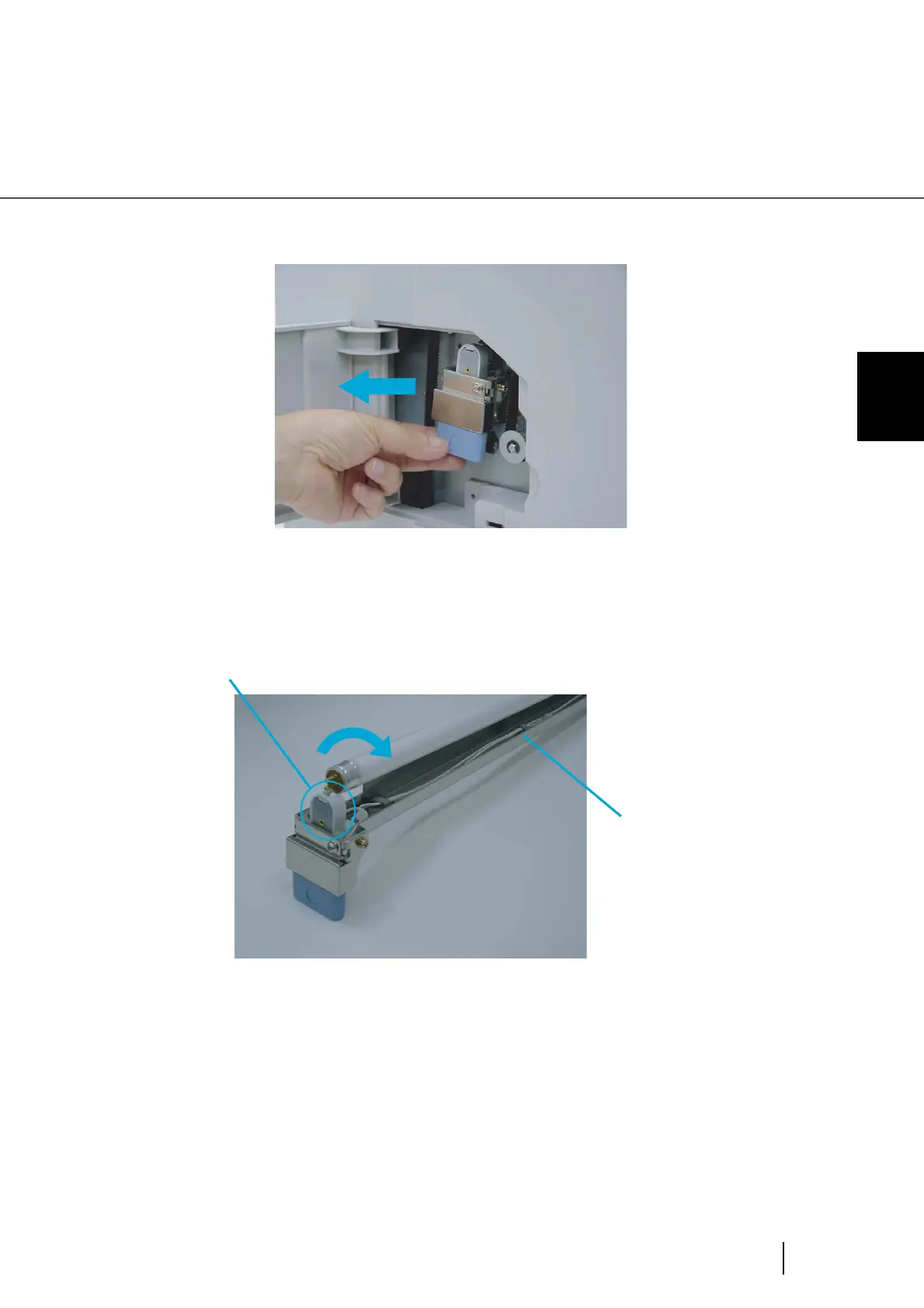

2. Hold the handle (blue part) and pull out the Back-side lamp unit.
3. Rotate the Lamp a half turn so that the terminals on each end align with
the slot on the Lamp socket and remove the Lamp from the unit.
Lamp socket
Backside lamp unit
