3.2 Cleaning the Pad
3
DAILY CARE
4. Wipe the translucent rubber part of the Pad ASSY using a lint free cloth
moistened with cleaner F1.
5. Install the guide plate in the reverse order of the removal.You should
push it down then rotate back, so the installation can be done smoothly.
6. Lower the ADF upper sheet guide carefully.
7. Lift the Upper transport unit to release the safety lock, then lower the unit
carefully and push the unit to close it completely.

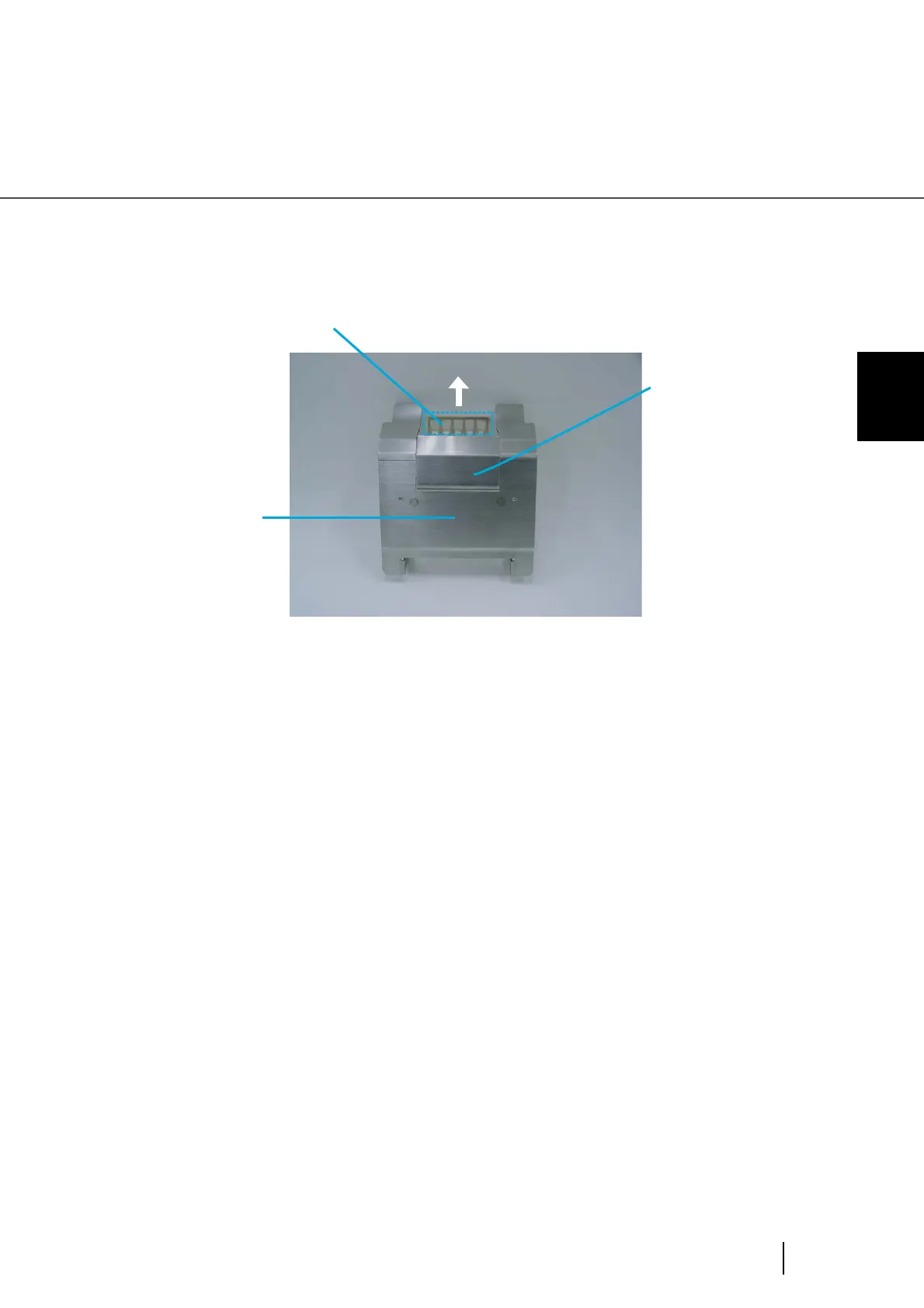

Pad (cleaning area)
Pad ASSY
Guide plate
