Fujitsu fi-4860C2

3-11
3.3 Cleaning the Rollers
3
DAILY CARE

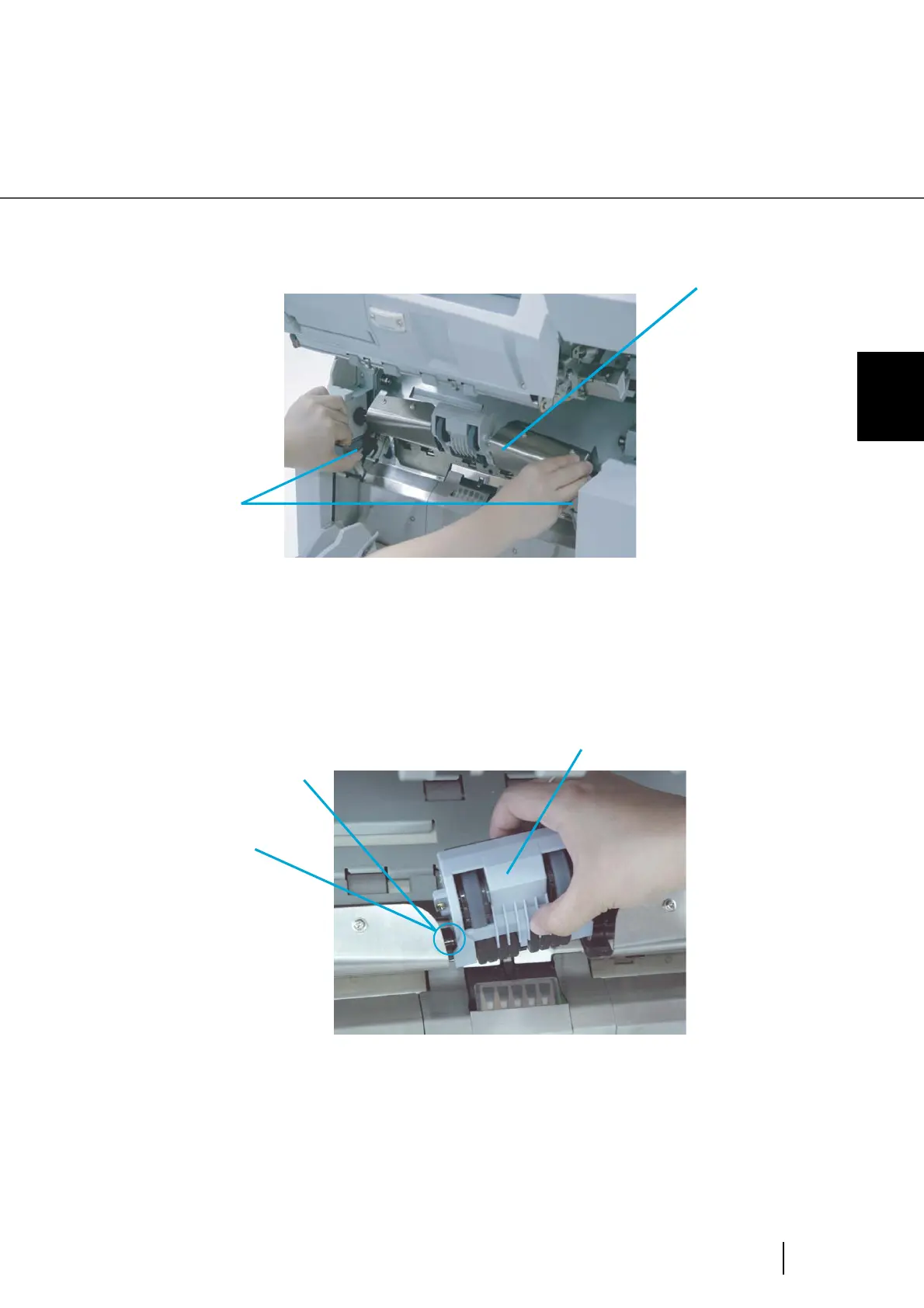

2. While pulling the ADF lever toward you, lift up the ADF upper sheet guide.
3. Slide the Pick roller unit to the left to disengage the clutch ring from the
shaft.
ADF upper sheet guide
ADF release lever
Shaft
Ring
Pick roller unit
