3.3 Cleaning the Rollers
3
DAILY CARE
5. Install the Pick roller unit in the reverse order of its removal.
6. Lower the ADF upper sheet guide carefully.
7. Lift the Upper transport unit to release the safety lock, then lower the unit
carefully and push the unit to close it completely.

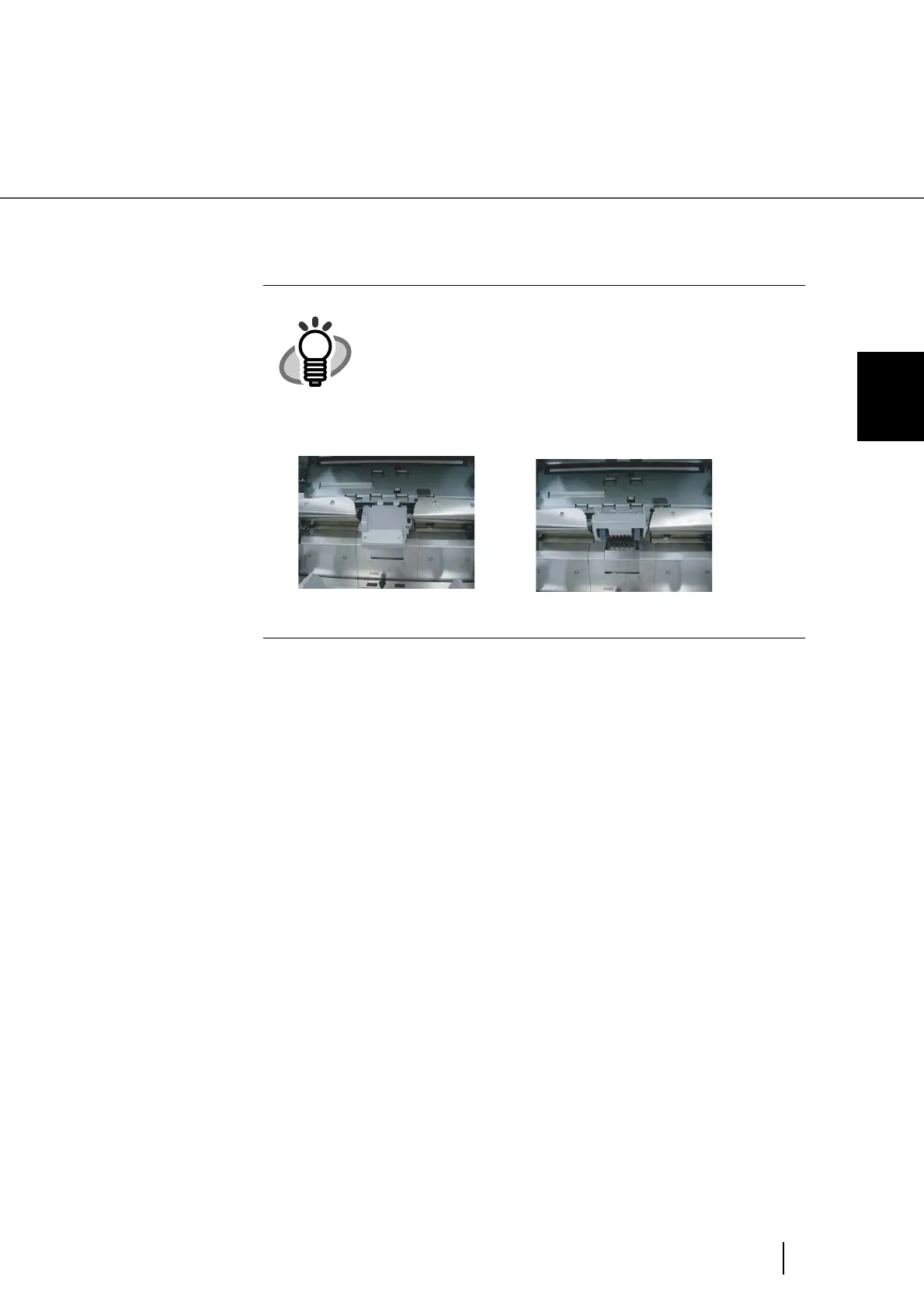

HINT
When attaching the Pick roller unit, hold the unit as
shown. Engage the drive ring onto the drive shaft.
Move left and align the clutch ring with the shaft and
move right to engage.
Incorrect installation Correct installation
