Fujitsu fi-5220C Getting Started Guide

1
Chapter1 PREPARING THE SCANNER
1.1 Checking the Contents of
the Scanner Package
When you open the scanner package, please handle the
main unit and its attachments carefully.
Make sure it contains all the parts listed in the package
contents list that is included in the package box.
If any parts are missing or defective, contact the dealer
you purchased the scanner or an authorized Fujitsu scan-
ner service provider. Handle the scanner and accessories
with care.

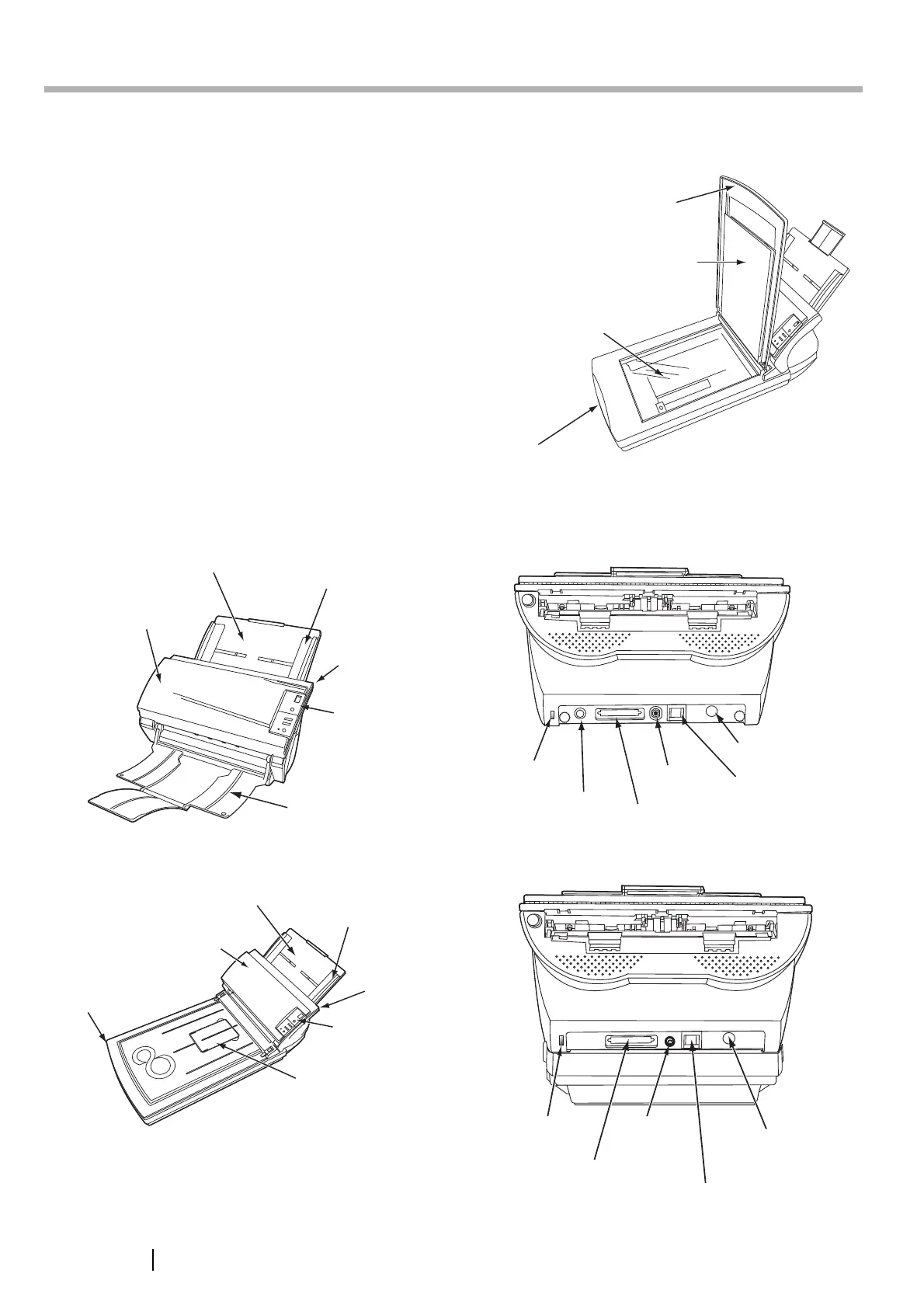

1.2 Names and Functions of
Parts
This section describes the scanner parts and their func-
tions.
■ Front
[fi-5120C]
[fi-5220C]
■ Inside
[fi-5220C]
■ Rear
[fi-5120C]
[fi-5220C]
Automatic document
feeder (ADF)
ADF paper chute
Side guide
ADF button
Operator panel
Stacker
ADF (Automatic
document feeder)
ADF paper chute
Side guide
ADF button
Operator panel
Stacker
Flatbed
Document holding pad
Document cover
Document bed
Shipping lock
(located on base)
DC inlet
USB Interface
connector
SCSI Interface
connector
SCSI ID
switch
EXT connector
(For Imprinter
connection)
5
4
3
2
1
0
9
8
7
6
Security
Slot
DC inlet
USB Interface connector
SCSI Interface connector
SCSI ID
switch
Security
Slot

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
