5.3 Replacing the Pad
5
REPLACEMENT OF CONSUMABLES
5.3 Replacing the Pad
1. Open the ADF cover.
Refer to “2.3 Opening and Closing ADF” on page 12.

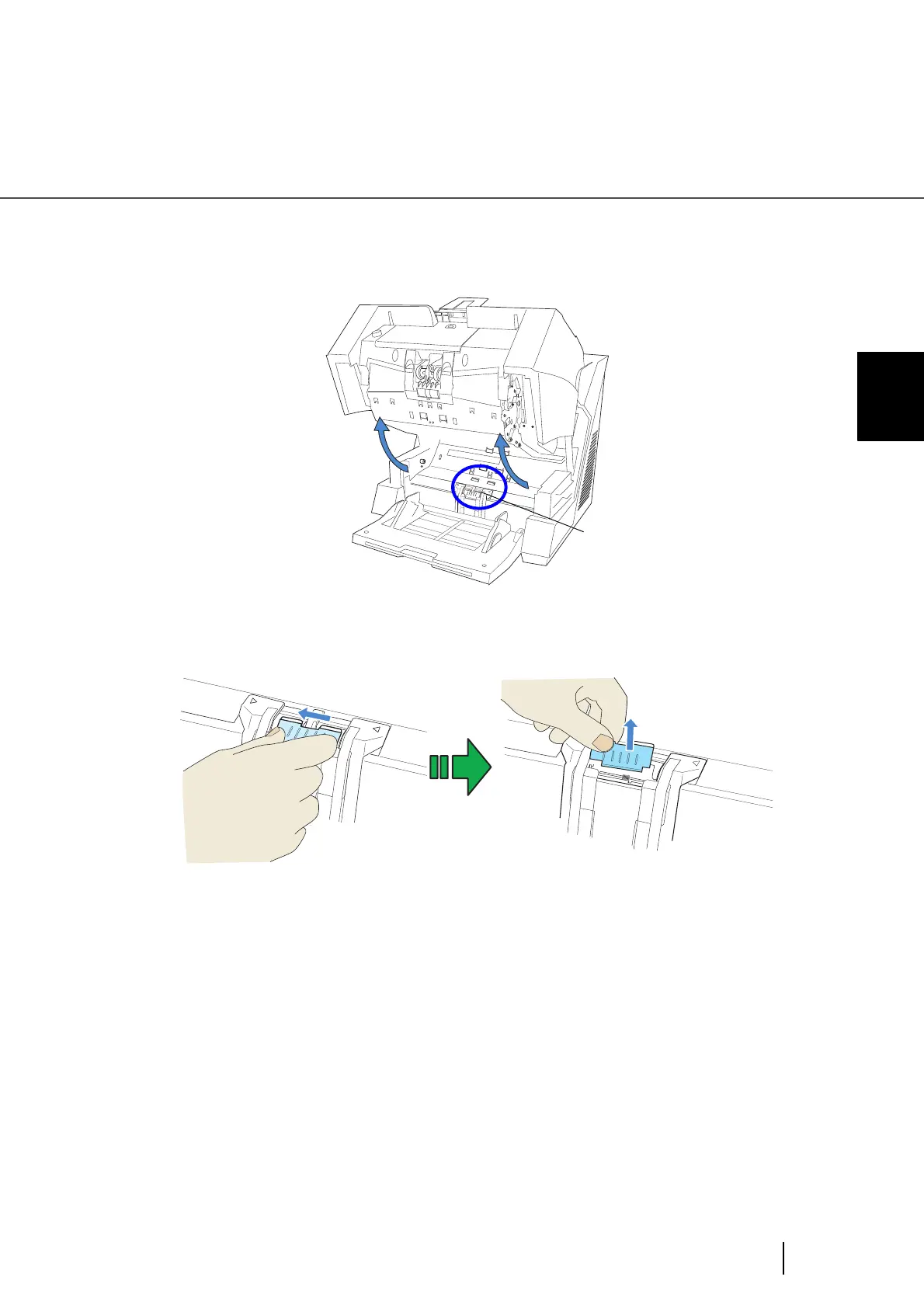

2. Move the Pad to the left, than pull it up in order to remove it from the
scanner.
3. Install the new Pad in the reversed order of the removable.
4. Close the ADF cover.
Refer to “2.3 Opening and Closing ADF” on page 12.
5. Reset the Pad counter.
Refer to “5.2 How to check and reset the Consumable/Cleaning Counter” on page 125.
