5.6 Replacing the Brake Roller

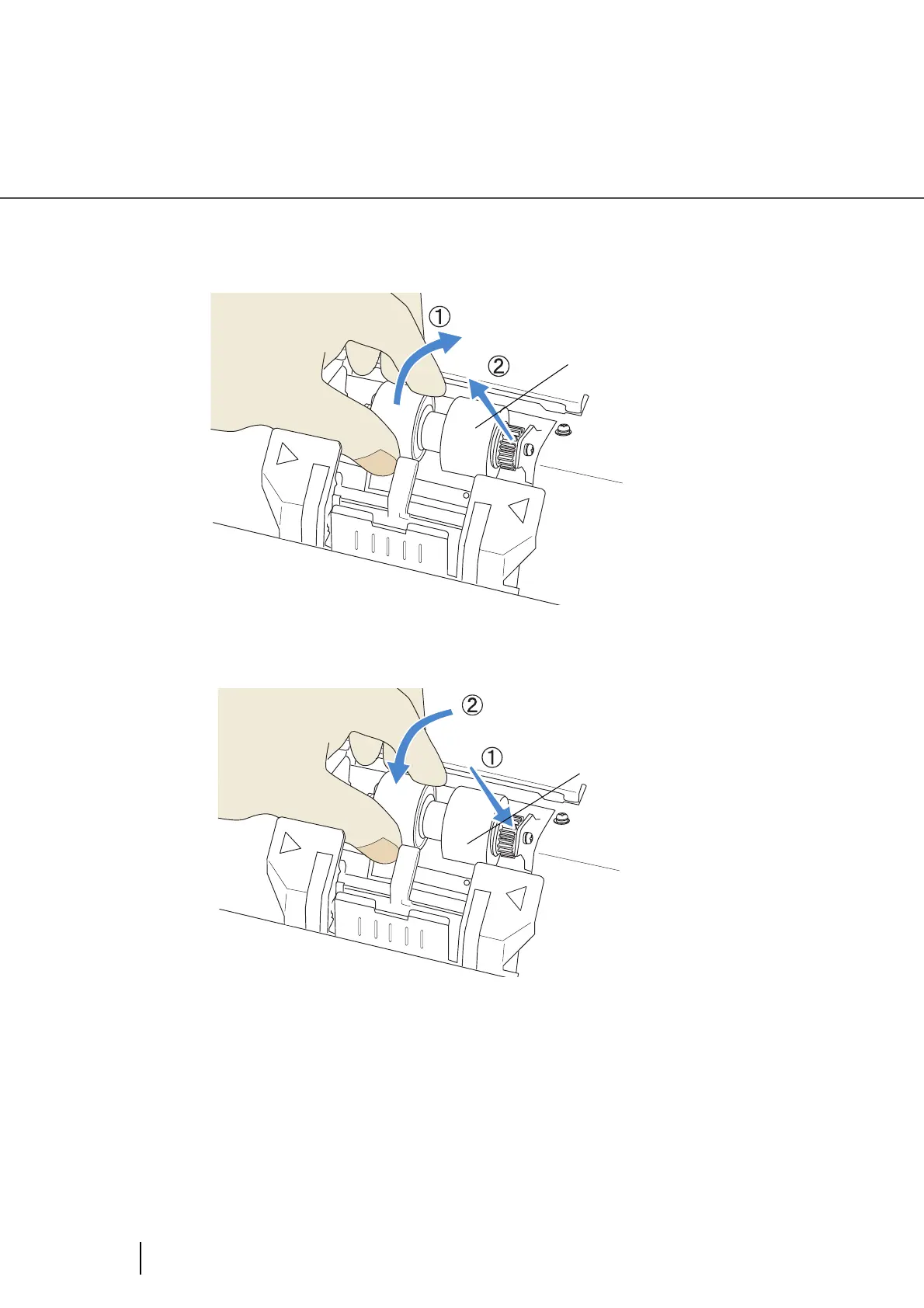

4. Remove the Brake roller
Lift up the left side of the Brake roller and remove the left shaft. Then pull the right shaft out of
its hole to remove it.
5. Install the new Brake roller.
After inserting the right end of the shaft into the hole, attach the left end.
6. Close the Pad cover.
7. Close the ADF cover.
Refer to “2.3 Opening and Closing ADF” on page 12.
8. Reset the Brake roller counter.
Refer to “5.2 How to check and reset the Consumable/Cleaning Counter” on page 125.
