3.2.2 Installation direction
Figure 3.4 shows the permissible installation directions for this drive. The mounting angle tolerance must
be within –5" to 10" from the horizontal. (–) shows that the insertion faces below.

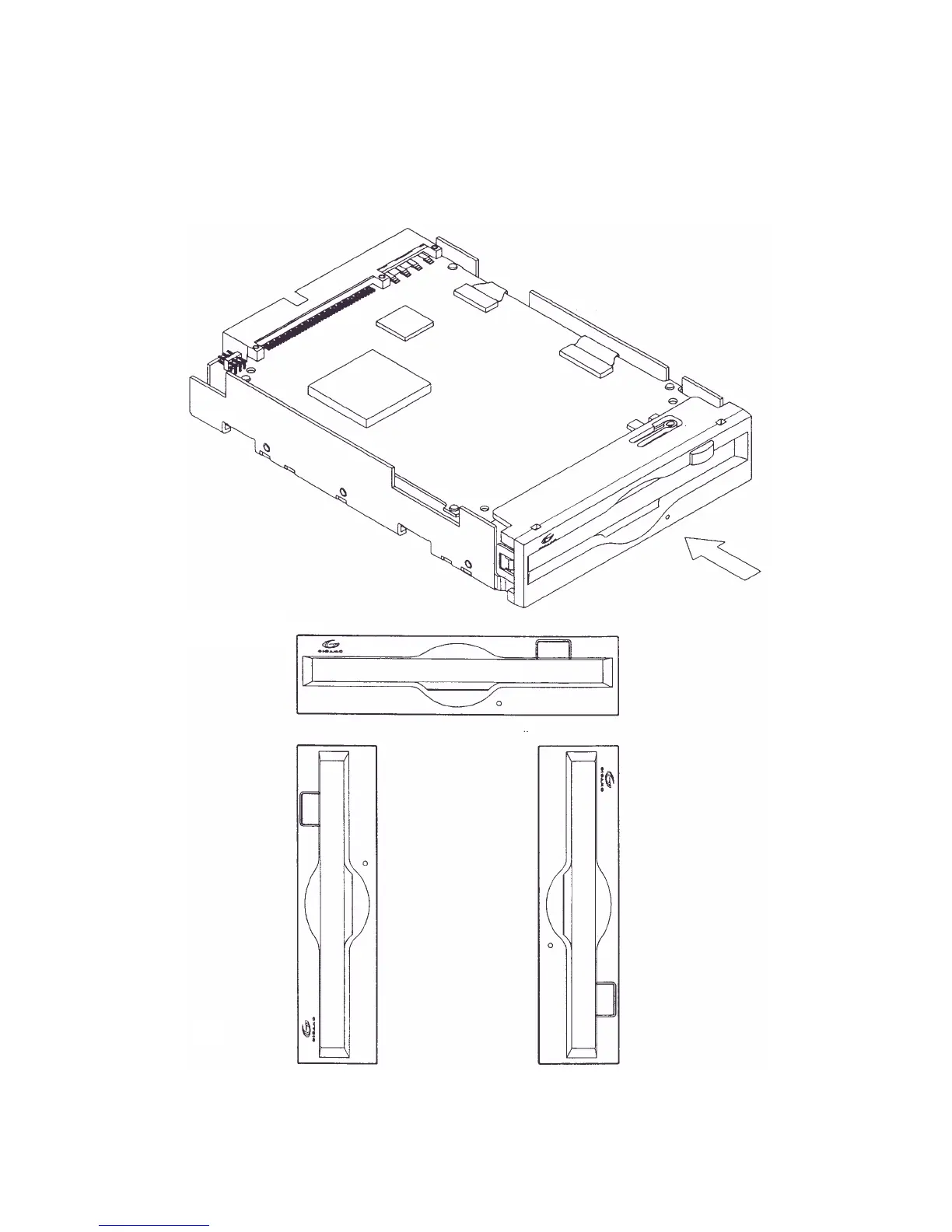

Figure 3.4 Installation directions
# Vertical
(Two orientations)
# Horizontal
