C156-E142-02EN 3 - 13
3.4.2 Cable connector specifications
Table 3.3 lists the recommended cable connector specifications.

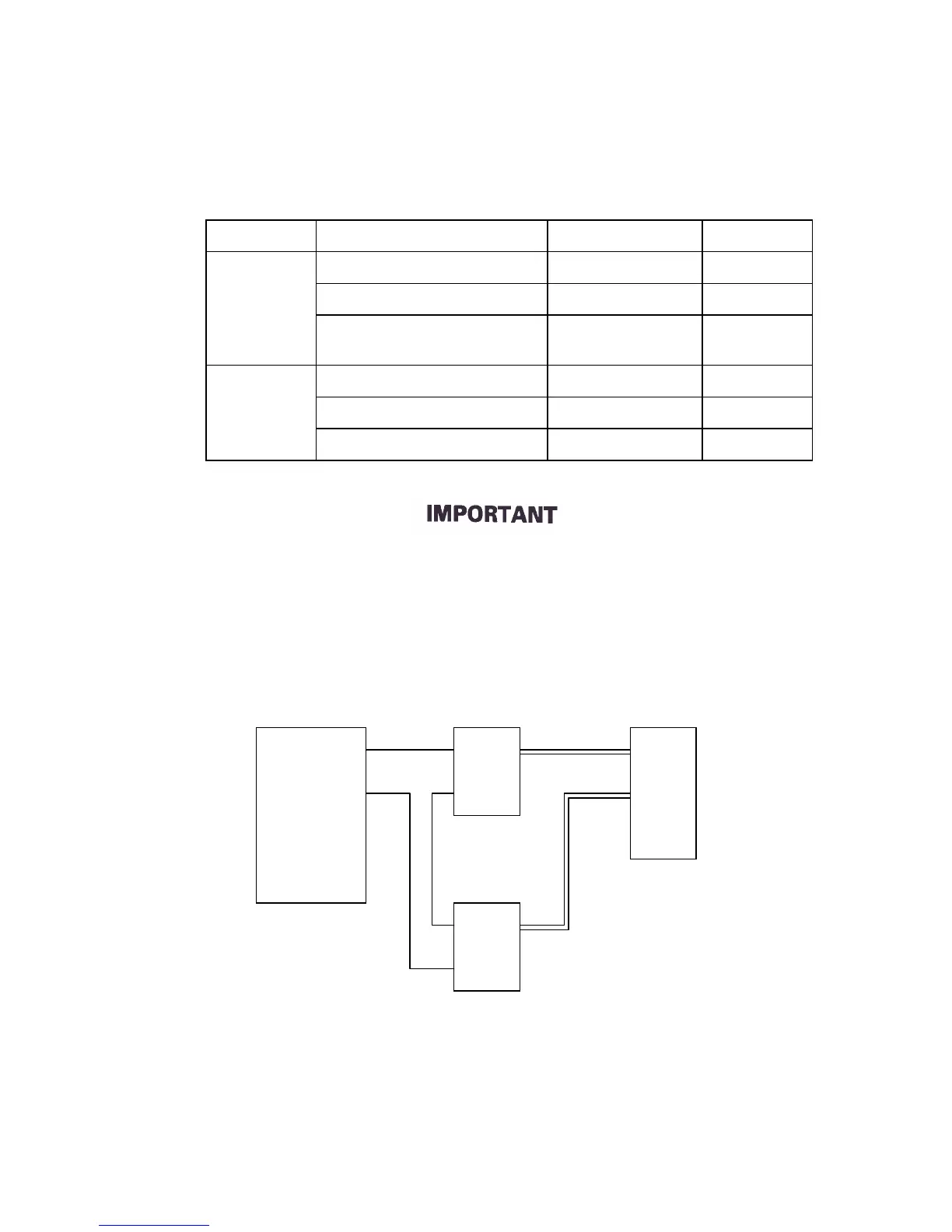

Table 3.3 Cable connector specifications
Cable name Name Model name Vendor
AT interface Cable socket (Close end type) FCN-707B040-AU/B Fujitsu
cable (40-pin) Cable socket (Through-end type) FCN-707B040-AU/0 Fujitsu
Signal cable 445-248-40 SPECTRS
STRIP
Cable socket housing 1-480424-0 AMP
Contact 170121-4 AMP
Power cable
Signal cable AWG18
The host interface cable must be a flat cable in terms of its overall
length. (Do not use a cable with a flat crimp terminal and loose lines
or twisted pairs.)
3.4.3 Drive connection
Figure 3.10 is a diagram showing cable connections between equipment.
Figure 3.10 Cable connection diagram
