Fujitsu MCE3064AP - Jumper Settings; Jumper Settings at Factory Shipping; Mode Setting; Master Device Setting

3 - 14 C156-E142-02EN
3.5 Jumper Settings
3.5.1 Jumper settings at factory shipping

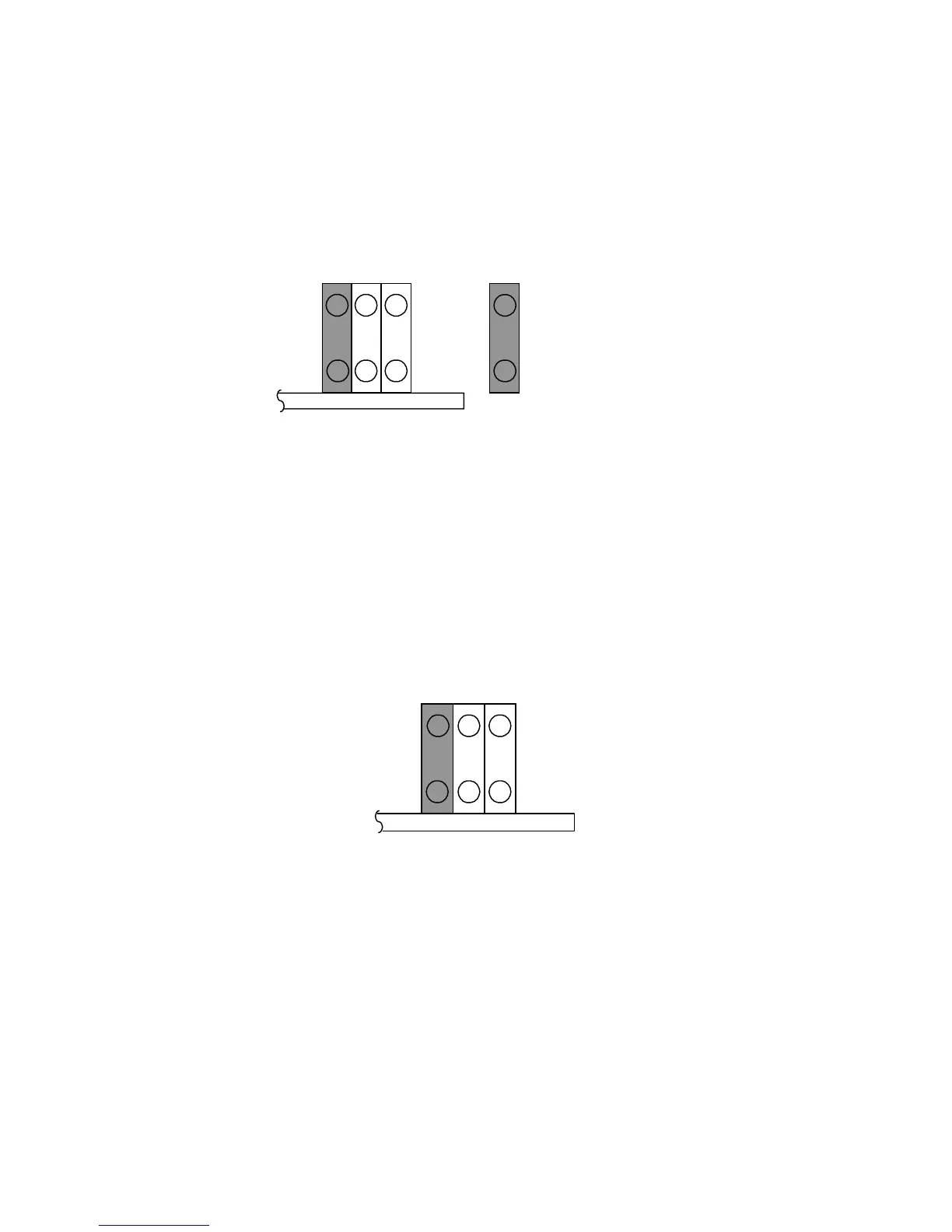

Figure 3.11 shows jumper settings at factory shipping.
CNH1
3
1
: Short
5-6 short-circuited: Sets the master device.
4
2
5
6
Figure 3.11 Jumper settings at factory shipping
3.5.2 Mode setting
(1) Setting master device mode
Figure 3.12 shows the setting for recognizing the master device (device 0).
CNH1
3
1
4
2
5
6
Figure 3.12 Master device setting
CNH5
CNH5
