14 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Removing the midplane cover 1

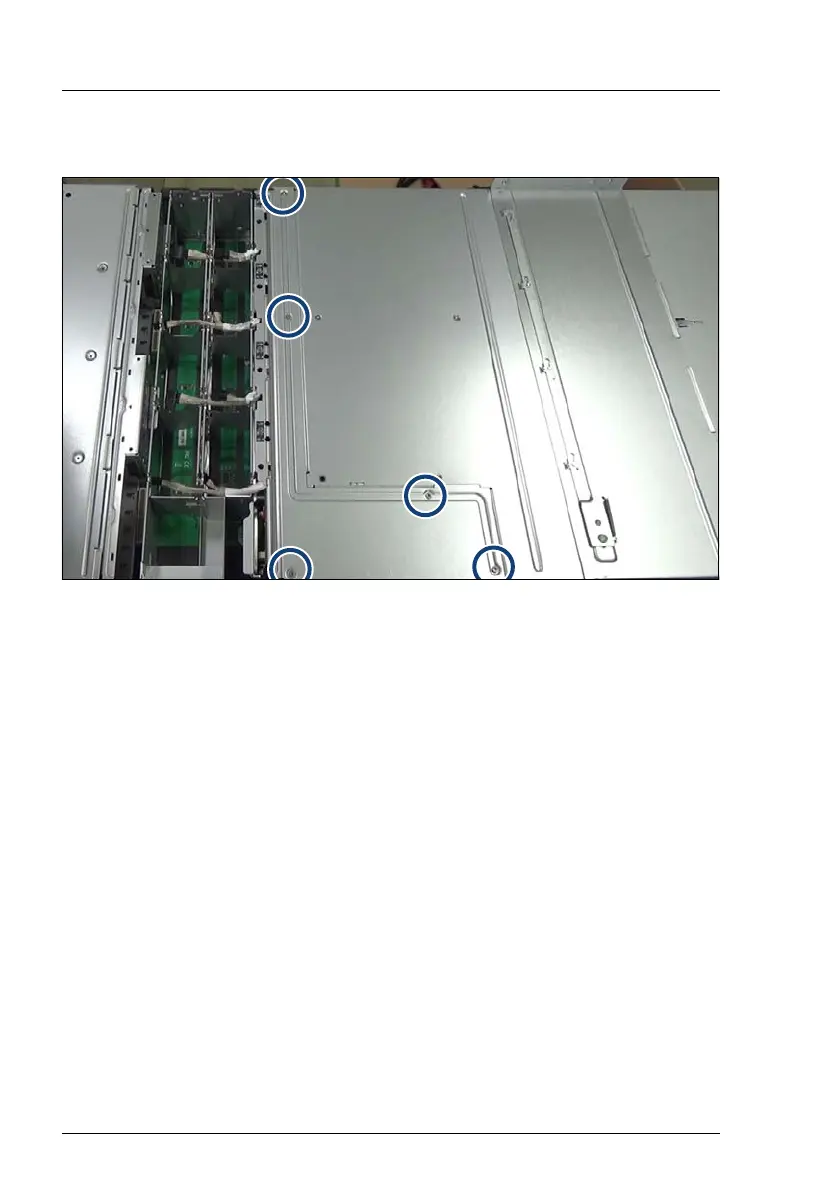

Figure 7: Removing the midplane cover 1 from the chassis
Ê Remove five screws from the midplane cover 1 (see circles)
Ê Remove the midplane cover.
