18 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

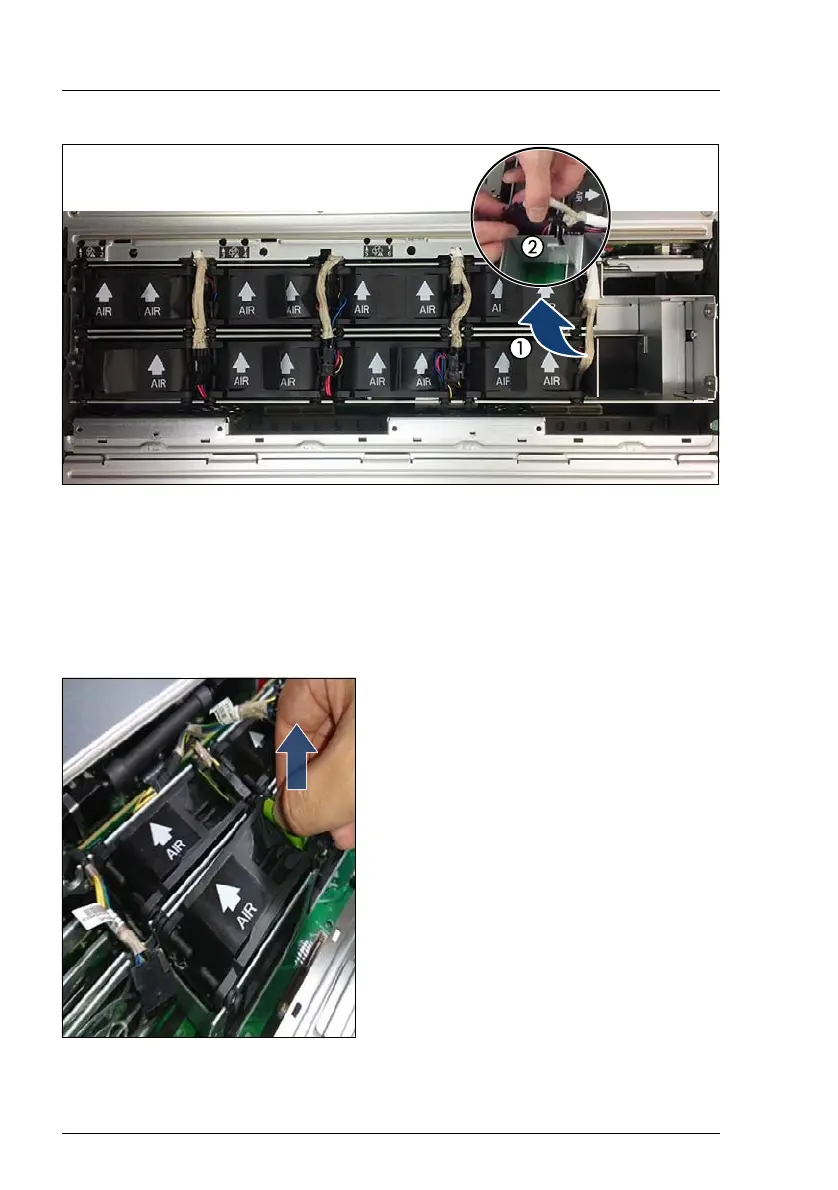

Figure 11: Disconnecting the fan cable
Ê Disconnect all fan cables:
Ê Pull the fan cable out of the gaps next to the fans (1).
Ê Disconnect the fans from the fan cable (2).
Ê Remove all fan modules:
Ê Remove the fan module (see
arrow).
