CX400 M4 Disassembly and Recycling Instructions 31
Disassembly and recycling
Removing the SXM2 extension tray
I When you use CX2570(SXM) M4 (liquid cooling type 2), perform the
following steps:

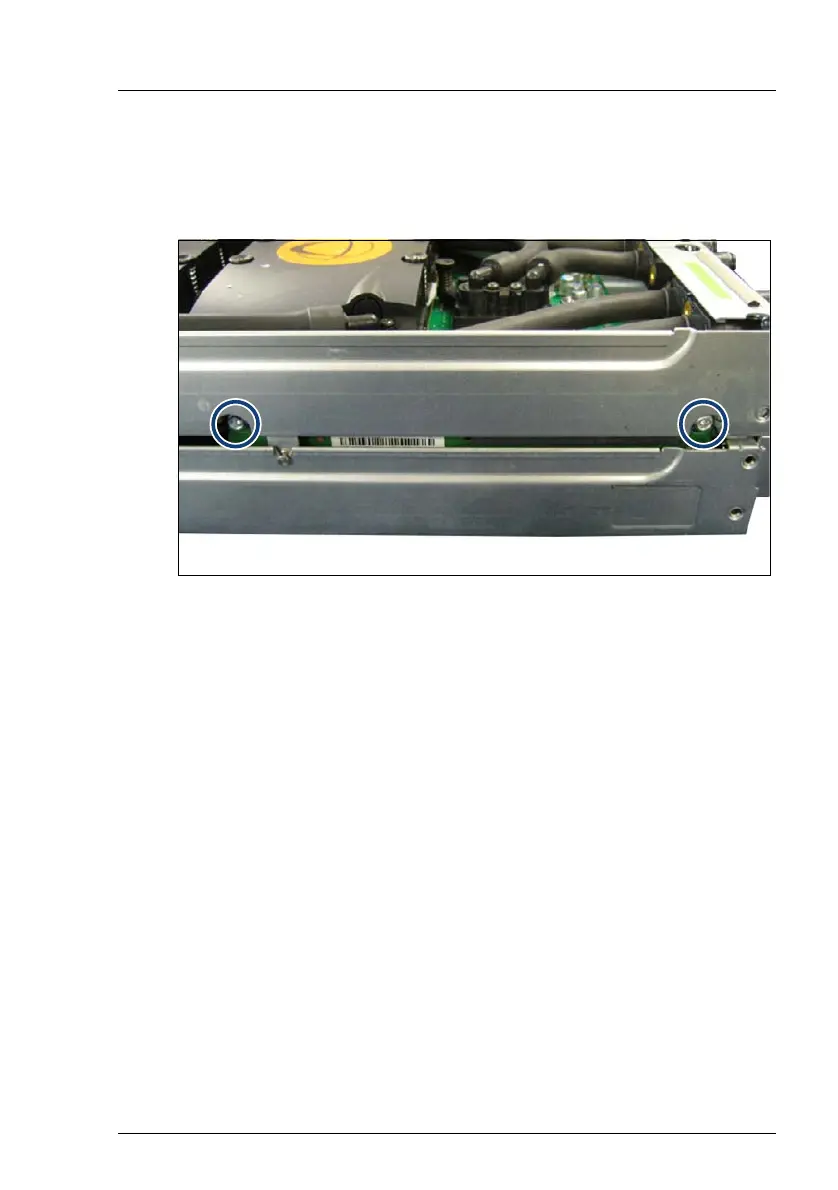

Figure 27: Removing the SXM2 extension tray
Ê Remove the screws of the SXM riser card (L) type 2 (see circles).
