34 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

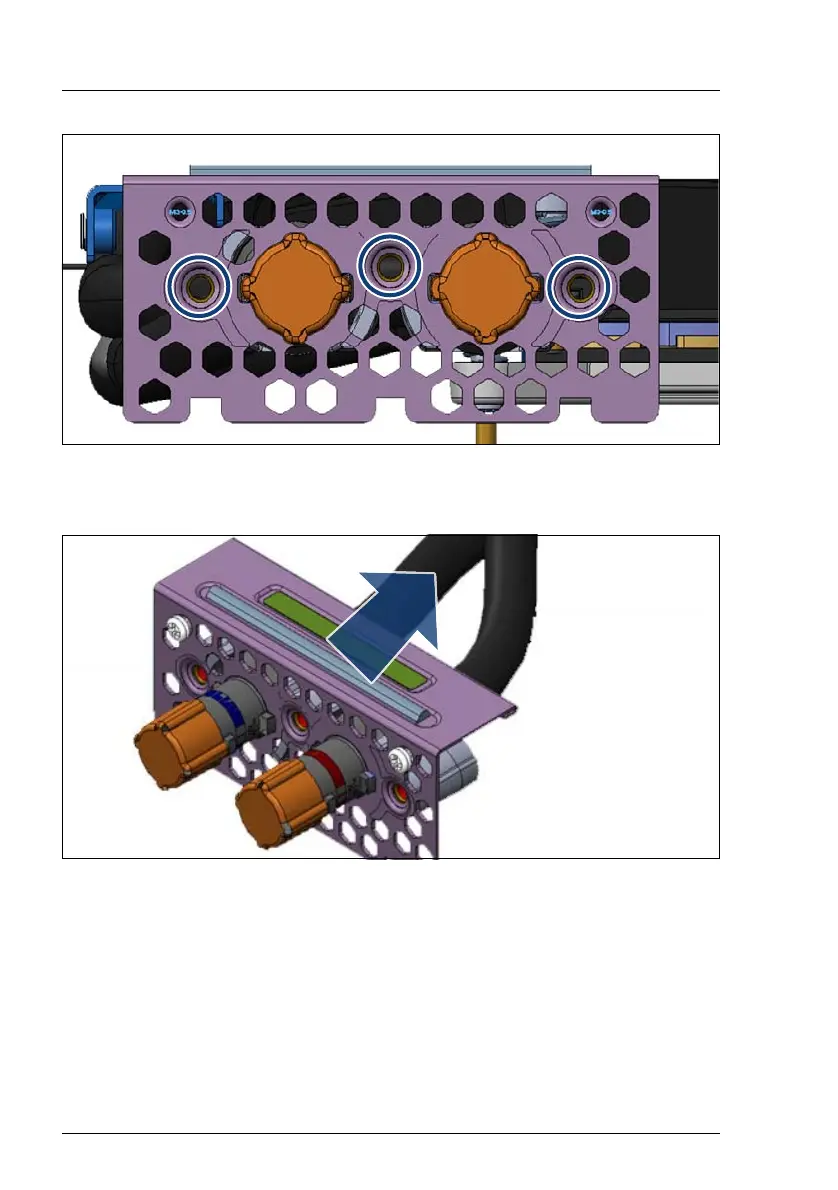

Figure 32: Loosening the LC bracket
Ê Loosen the three screws (see circles) of the LC bracket.
Figure 33: Removing the flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
