48 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling

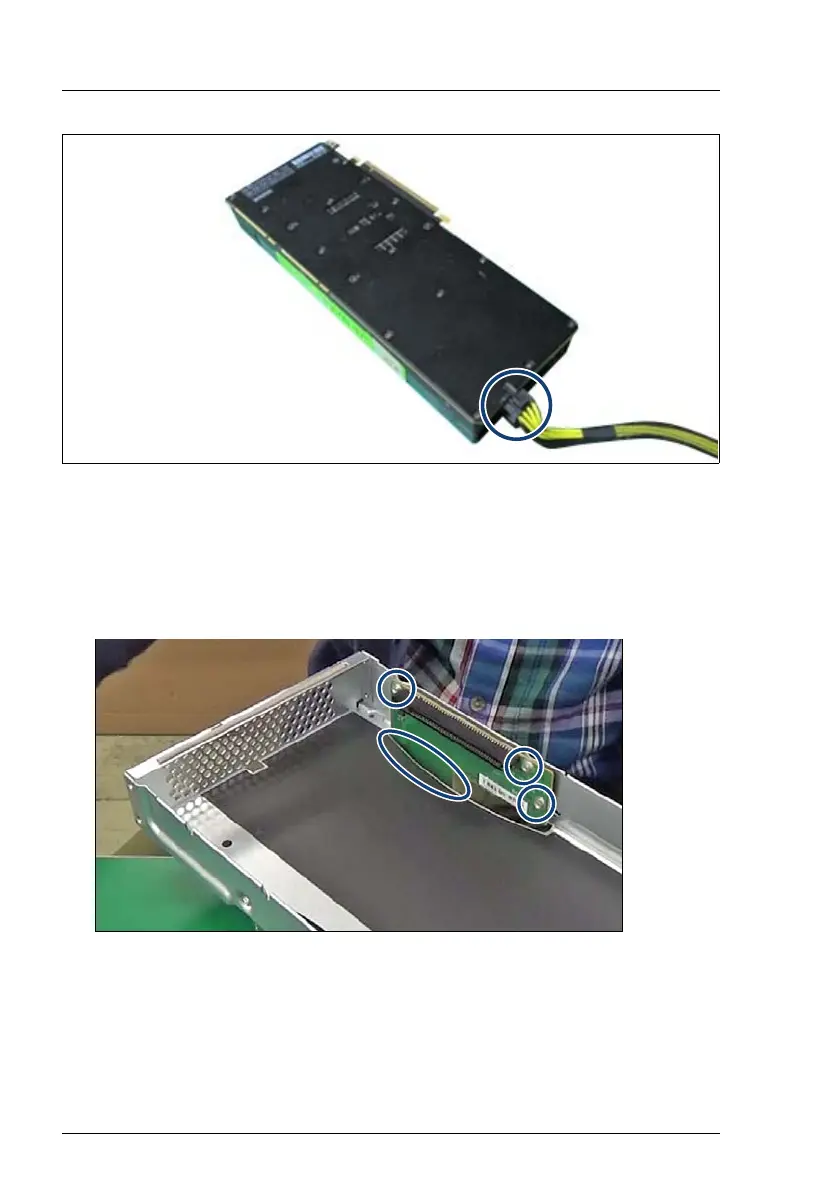

Figure 56: Disconnecting the GPGPU power cable (B)
Ê Disconnect the GPGPU power cables from the GPGPUs (see circles).
Removing GPGPU risers
Ê Remove all GPGPU risers:
Figure 57: Removing the riser (L)-P1
Ê Place the GPGPU tray so that the system board connector of the riser
(see oval) is not damaged.
Ê Remove three screws from the outside of the chassis.
Ê Remove the riser in a vertical motion out of the chassis.
