CX400 M4 Disassembly and Recycling Instructions 55
Disassembly and recycling
Removing the FBU

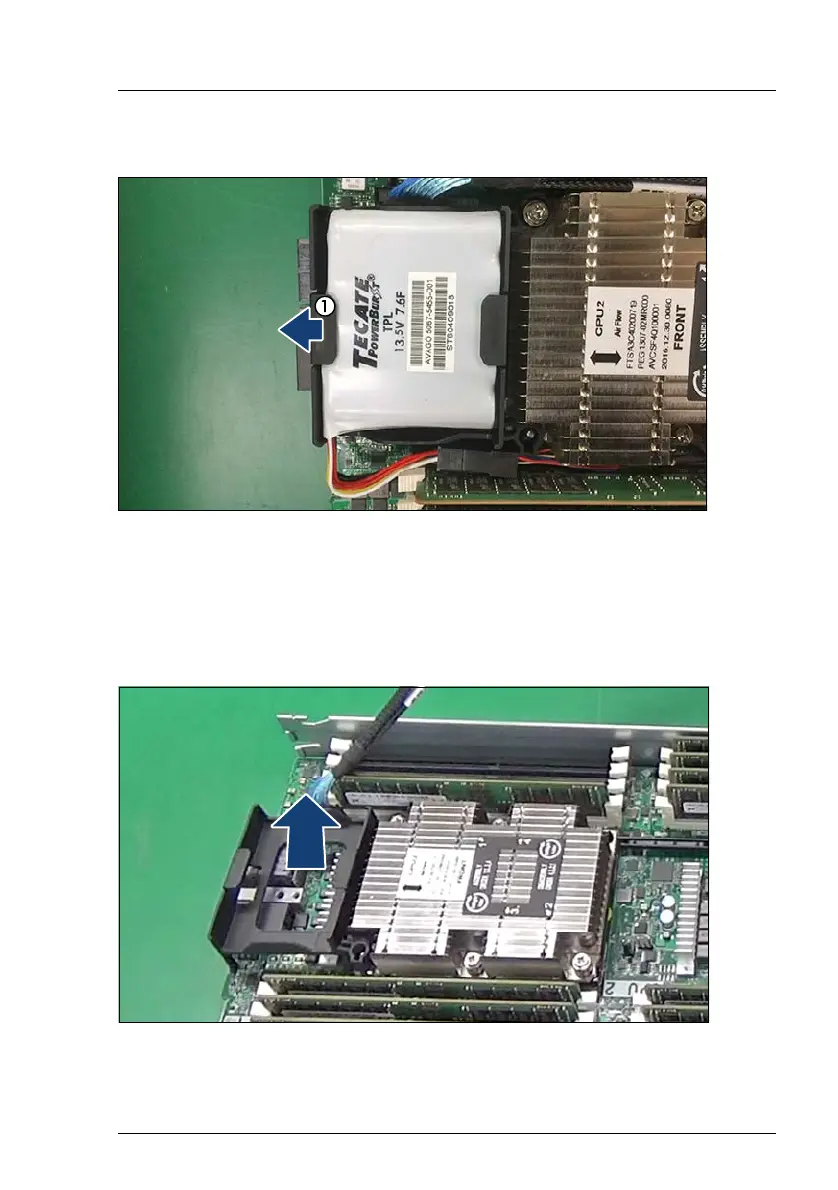

Figure 67: Removing the FBU from the holder
Ê Bend the other bracket outwards (2).
Ê Lift the FBU from the holder.
Removing the FBU holder
Figure 68: Removing the FBU holder
Ê Remove the FBU holder from the system board as shown.
