CX400 M4 Disassembly and Recycling Instructions 75
Disassembly and recycling
Removing the TPM

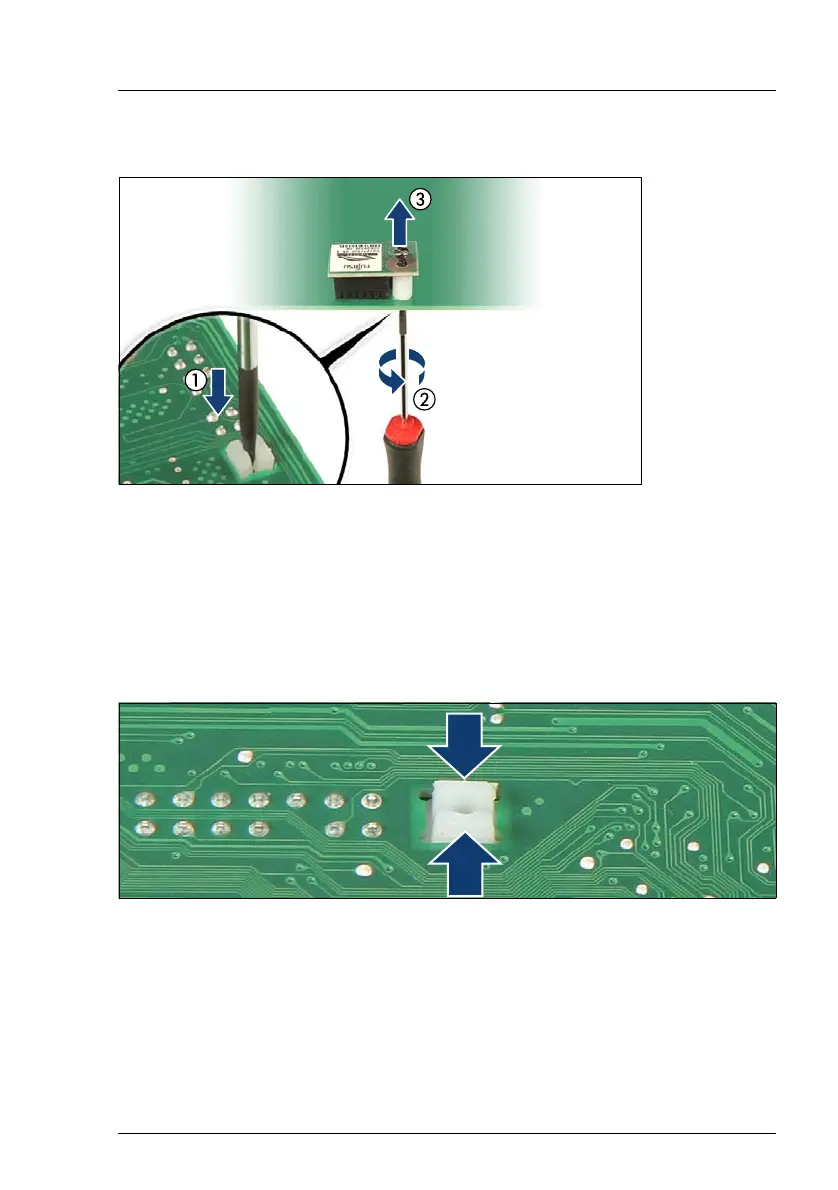

Figure 100: Removing the TPM screw
Ê Locate the slotted lower end of the TPM screw (1).
Ê Loosen the TPM screw using a thin slotted screw driver (e.g. watchmaker's
screw driver) or the dedicated TPM screw driver (for Japan) (2).
Ê Remove the TPM screw (3).
Ê Remove the TPM on the upper side of the system board.
Figure 101: Removing the TPM spacer
Ê Using a pair of flat nose pliers, press together the hooks on the TPM spacer
(see arrows) and remove it from the system board.
