Fujitsu PRIMERGY RX200 S3 Service Supplement

18 Service Supplement RX200 S3
Pulling out / removing the server Replacing components
V CAUTION!
The server has no cable management in the rack!
Therefore you must unplug all cables connected to server before you
remove it.
V CAUTION!
At least two people are needed to remove the server from the
rack.

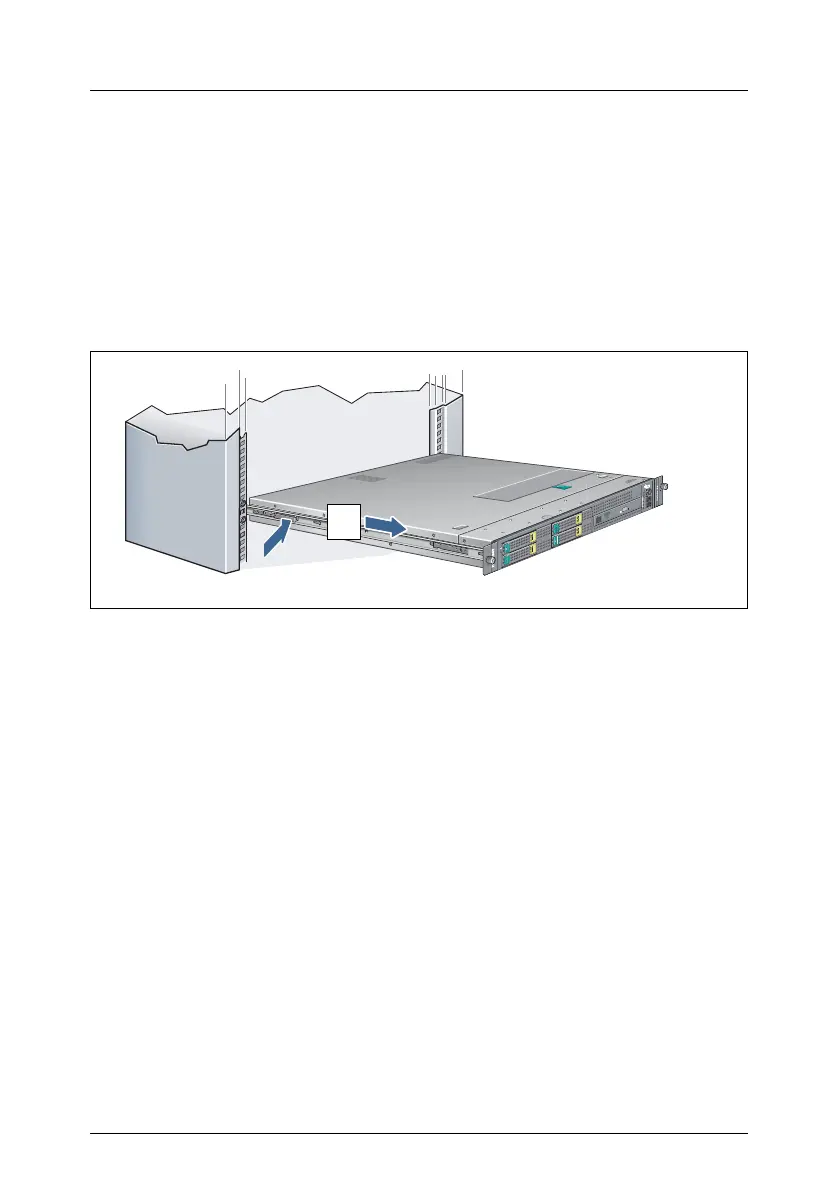

Figure 3: Removing the server from the rack
Ê Press in the safety springs (1) on both sides, and carefully pull the server
further toward you (2).
Ê Pull the server out of the rails and place it on a table, for example.
C
O
MPA
C
T
High Speed
COMP
A
CT
High Speed
1
2

Fujitsu PRIMERGY RX200 S3 Specifications

General

Number of Processors	2
Storage	Up to 6 x 3.5" SAS/SATA HDD
RAID Support	RAID 0, 1
Network	Dual Gigabit Ethernet
Form Factor	1U Rack
Power Supply	Hot-plug redundant power supply
