RX200 S3 Service Supplement 23
Replacing components Replacing the SAS backplane for 3.5-inch drives
4.7 Replacing the SAS backplane for 3.5-inch
drives
Requirements
The server has been switched off
The power cables have been uplugged
The housing cover has been removed
Ê Pull both hard disk modules out a little.
Ê Remove any cables from the SAS backplane.

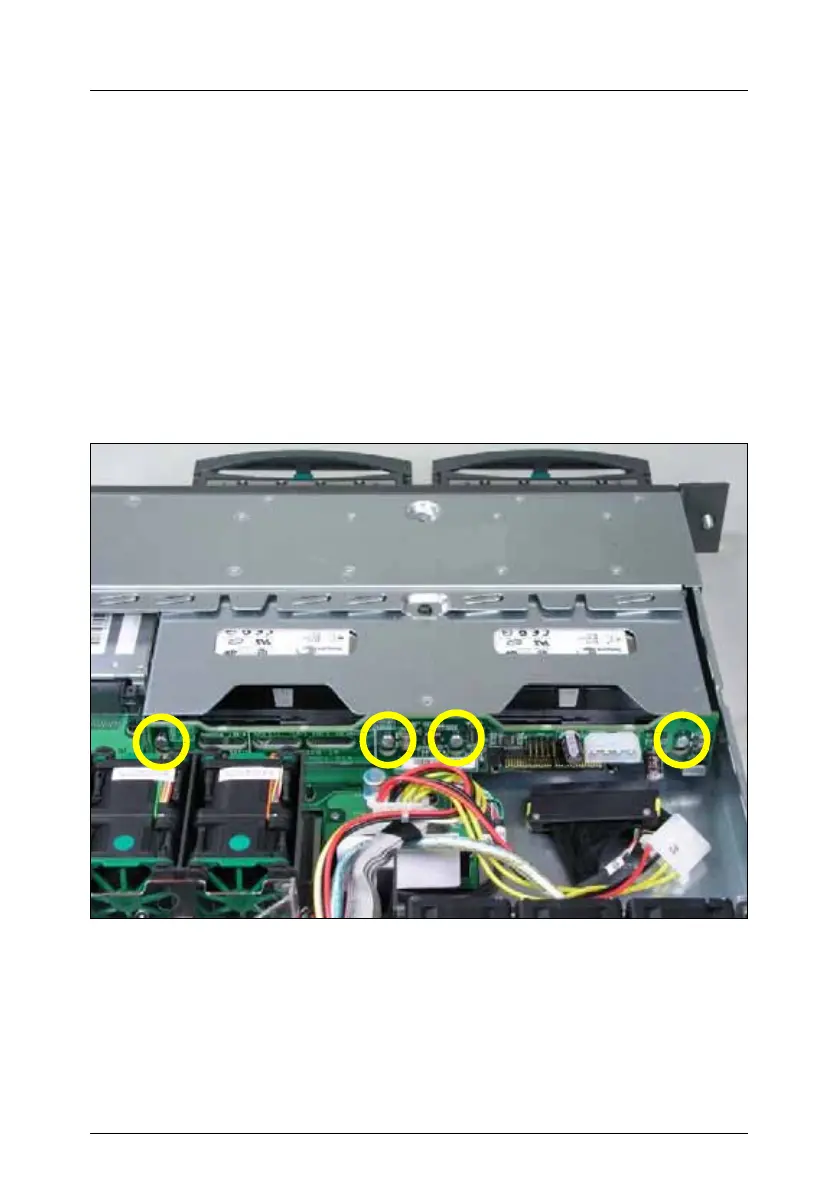

Bild 8: Removing the SAS backplane for 3.5-inch drives
Ê Lift the SAS backplane slightly and then take it out, unhooking it from the
fixing pins (see figure).
To install the SAS backplane follow the above steps in reverse.
