24 Service Supplement RX200 S3
Replacing the SAS backplane for 2.5-inch drives Replacing components
4.8 Replacing the SAS backplane for 2.5-inch
drives
Requirements
The server has been switched off
The power cables have been uplugged
The housing cover has been removed
Ê Pull all hard disk modules out a little.
Ê Remove any cables from the SAS backplane.

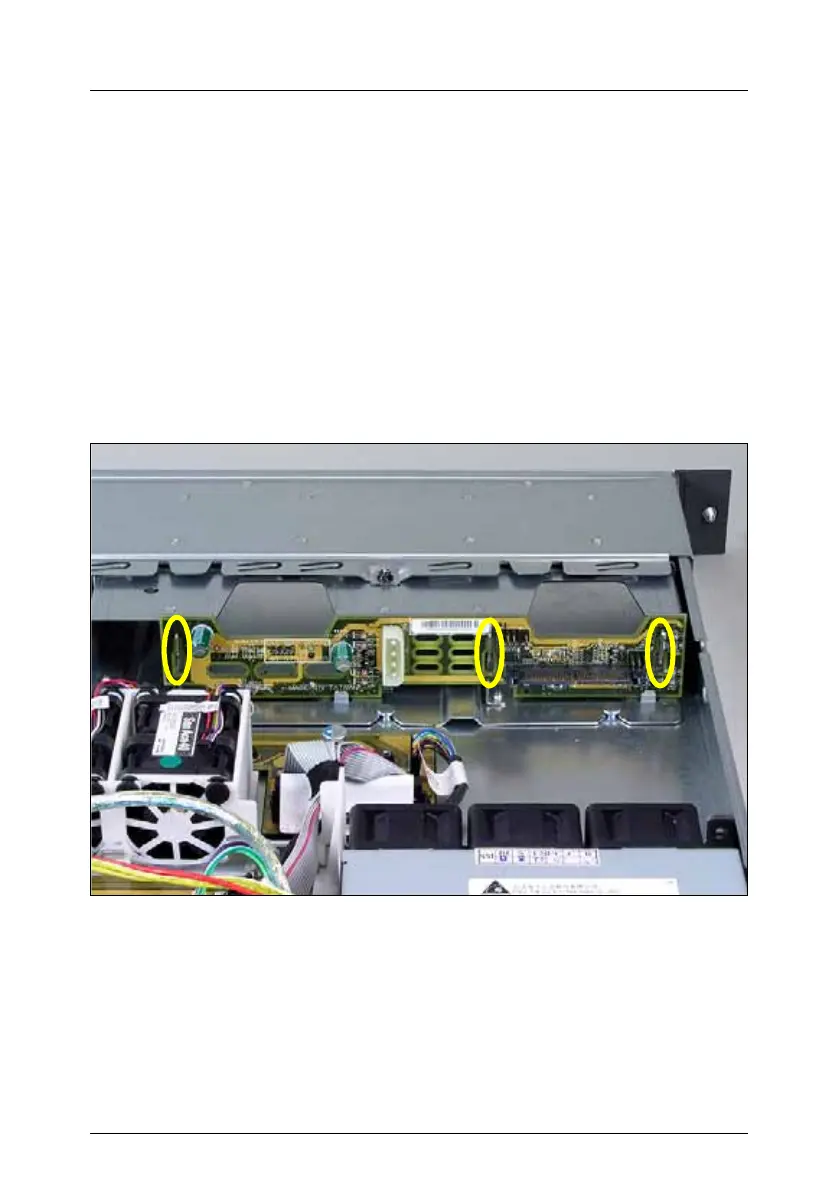

Figure 9: Removing the SAS backplane for 2.5-inch drives
Ê Tilt the SAS backplane and remove it from the metal brackets (see figure) in
an upward direction.
To install the SAS backplane follow the above steps in reverse.
