32 Service Supplement RX200 S3
Fan backplane Settings
5.3 Fan backplane
Part number: SNP: A3C40073773

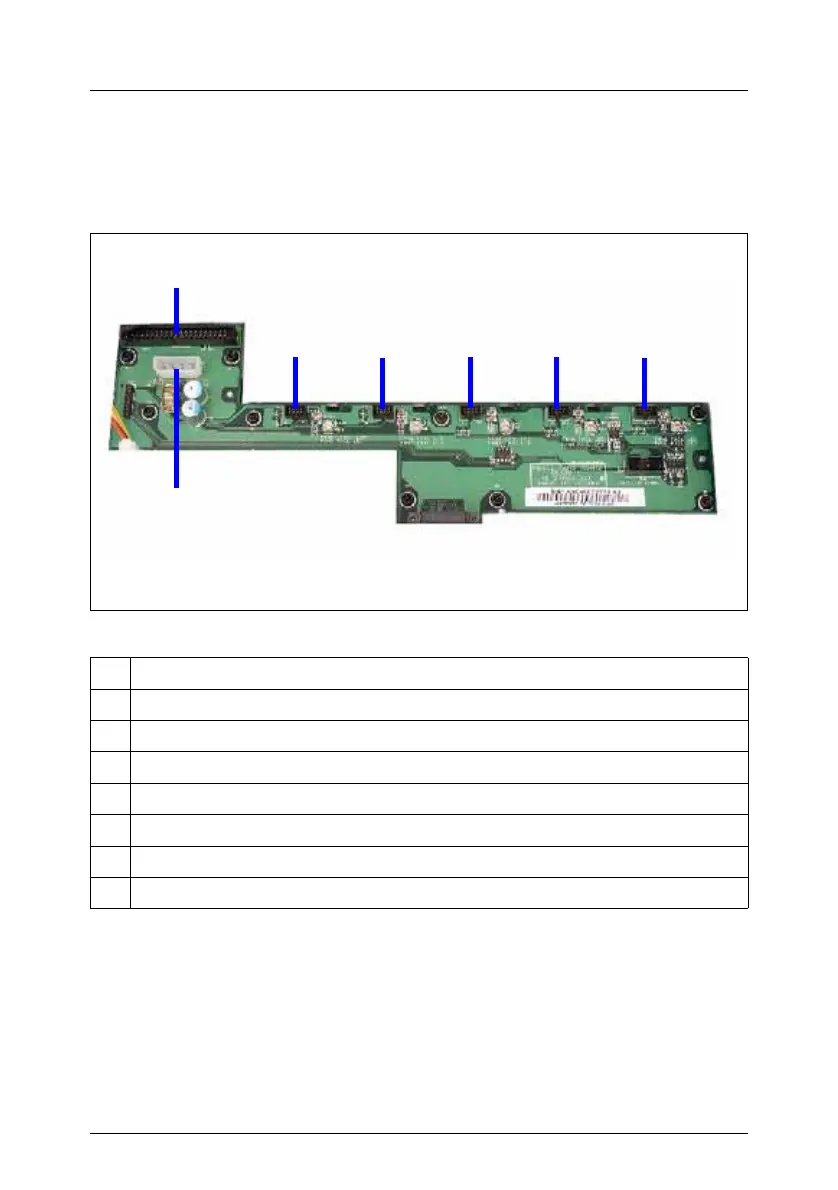

Figure 15: Connector assignment of the fan backplane
# Connection
1 IDE cable for CD-ROM/DVD drive
2 System fan 9/10
3 System fan 7/8
4 System fan 5/6
5 System fan 3/4
6 System fan 1/2
7 Auxiliary power supply for the fan backplane
1
2
6
7
5
3
4
