RX200 S3 Service Supplement 27
Replacing components Replacing the system board
4.10 Replacing the system board
Requirements
– The server has been switched off
– The power cables have been uplugged
– The housing cover has been removed
Removing the system board
Ê Remove the memory modules as described in the Options Guide.
Ê Remove the processors as described in the Options Guide.
Ê Remove the riser card holder as described in the Options Guide.
Ê Unplug all cables from the system board.

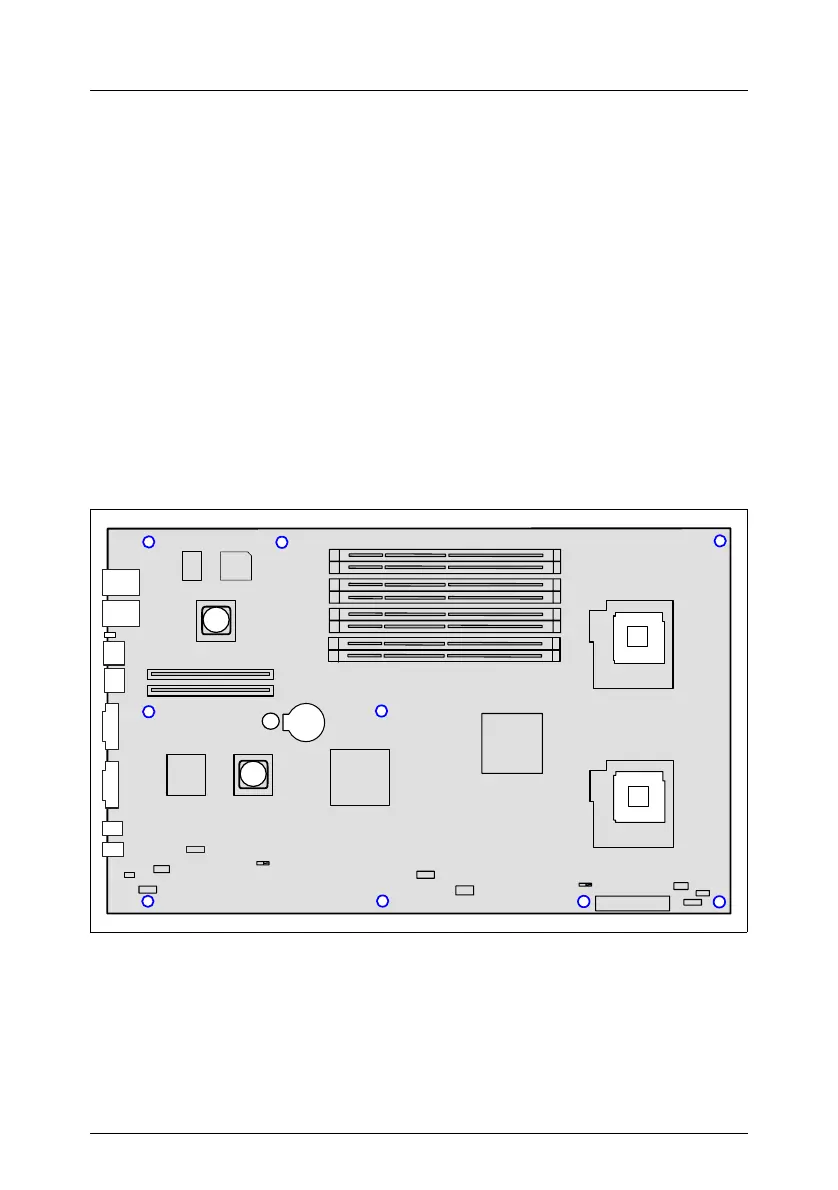

Figure 11: Position of the screws of the system board
Ê Undo all nine screws of the system board (see figure above).
Ê Push the system board about 1 cm in the direction of the housing front. This
pulls all the plug connectors out of the external connection panel.
Ê Hold the system board on both sides and lift it carefully out of the housing.
