24 Options Guide RX200 S3
Upgrading / replacing main memory Main Memory

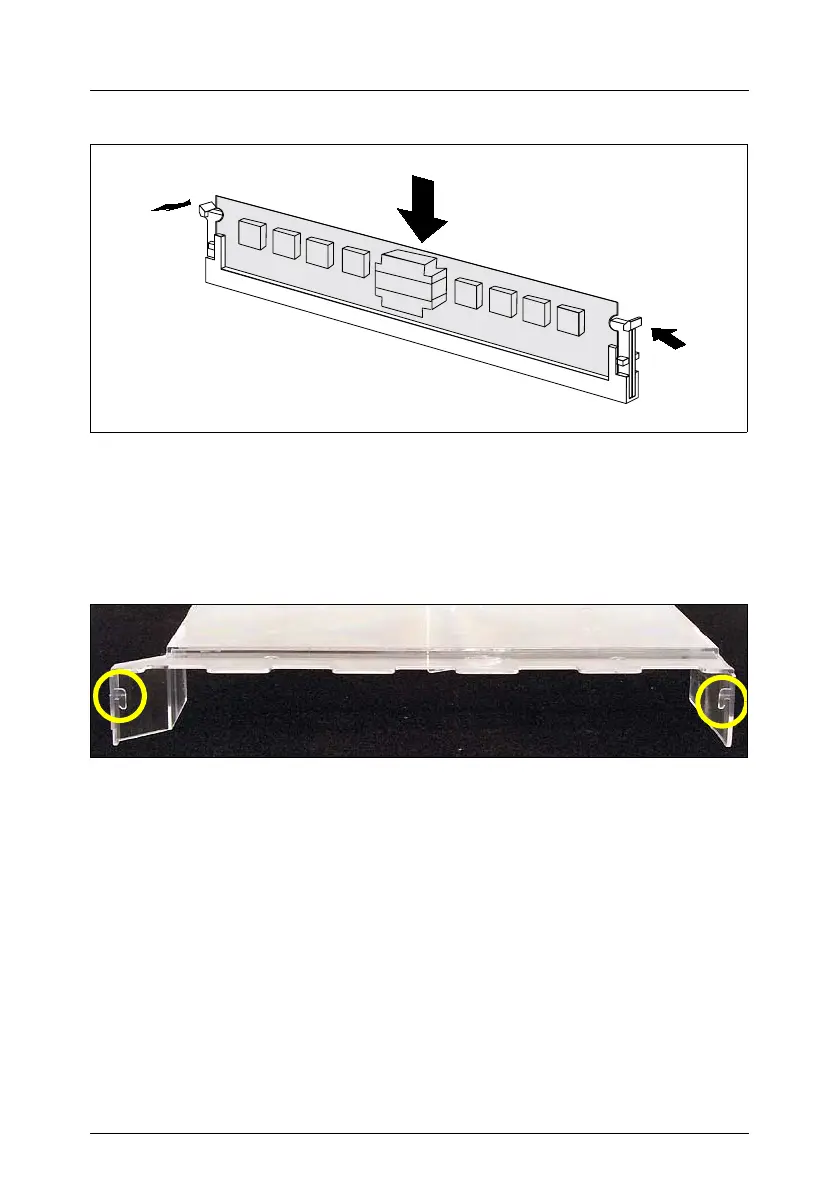

Figure 7: Installing a memory module
Ê Carefully press the memory module into the slot (1) until the ejector tabs on
both sides of it engage (2).
Ê Reinstall the air duct. Ensure that the hooks on the air duct (see figure 8)
engage on the fan’s rear panel.
Figure 8: Hooks of the air duct
Ê Close the server, plug in the power plugs, and switch on the server as
described in the chapter “Completion” on page 41f.
2
2
1
