30 Options Guide RX200 S3
Exchanging the processor Processors

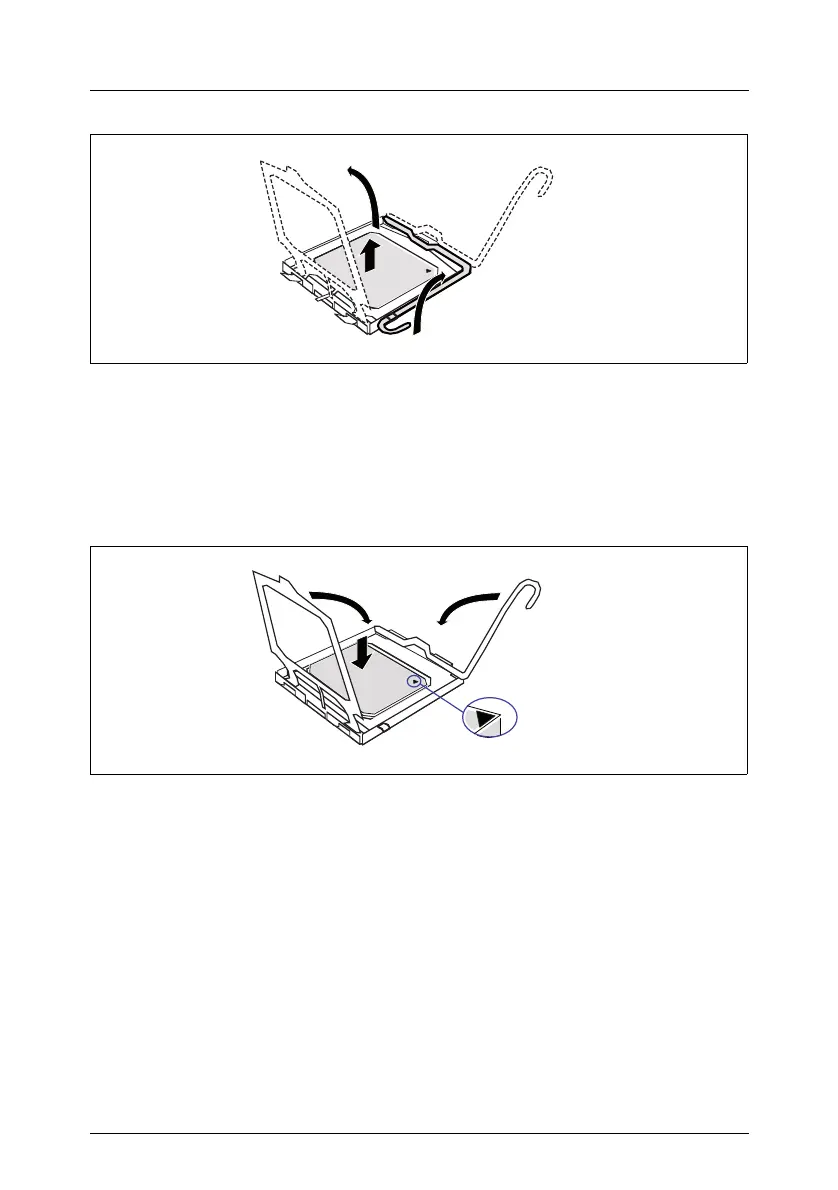

Figure 14: Removing the old processor
Ê Release the socket lifter by pressing it sideways and pull it upward as far as
it will go (1).
Ê Open the cover (2).
Ê Lift the installed processor carefully out of the socket (3).
Figure 15: Installing the new processor
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
Ê Close the cover (2).
Ê Lock the processor in place in the socket by returning the socket lever to its
original position (3).
