RX200 S4 Service Supplement 25
Replacement routines Replacing the SAS board for 2.5-inch drives
4.6 Replacing the SAS board for 2.5-inch drives
Ê Open the server as described in the section “Preparation” on page 17.
Ê Pull the four hard disk modules out for a few centimeters.
Ê Remove all cables from the SAS board.

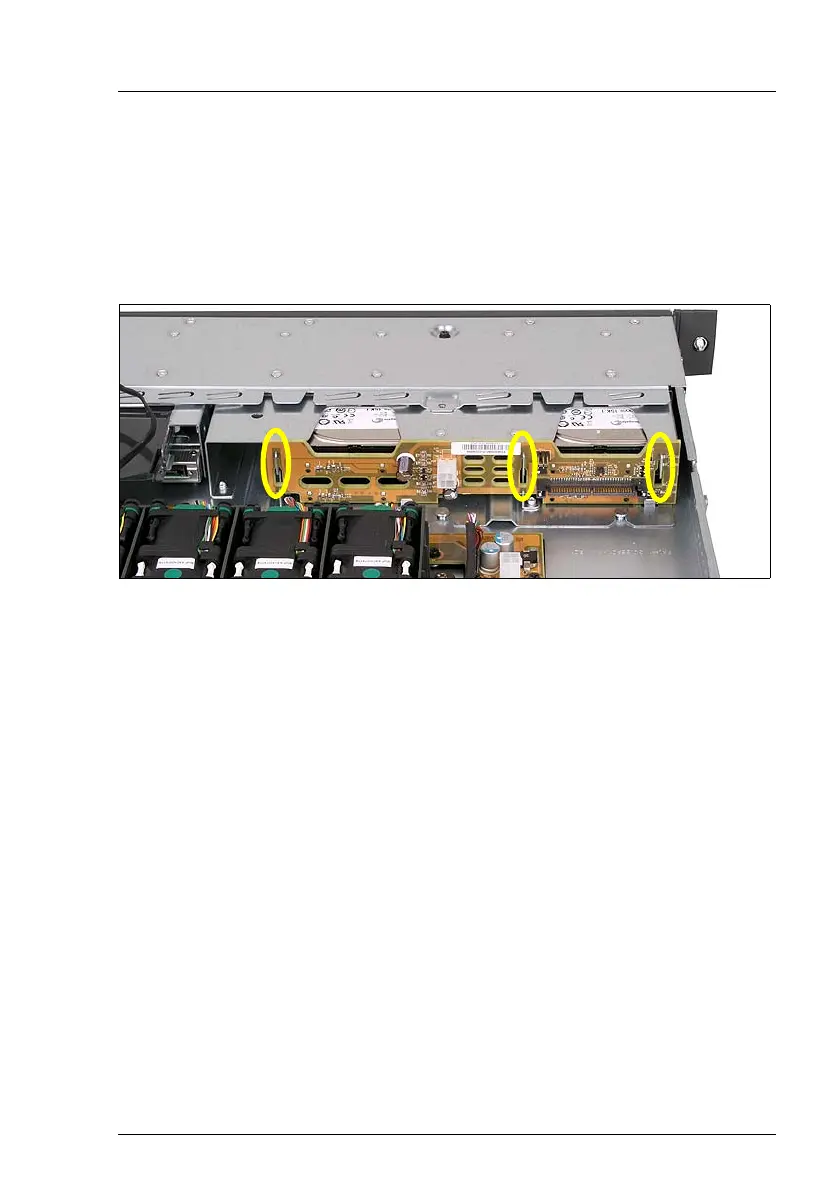

Figure 12: Removing the SAS board for 2.5-inch drives
Ê Pull the SAS board upward until the three hooks disengage and then take
out the SAS board in the direction of the system fans.
Ê Insert the new SAS board on the hooks and push the SAS board down until
the hooks engage.
Ê Connect all cables to the SAS board (see the cabling plan in the Options
Guide).
Ê Push the hard disk modules entirely back into place.
Ê Close the server and plug in the power plugs (detailed description see the
Options Guide).
